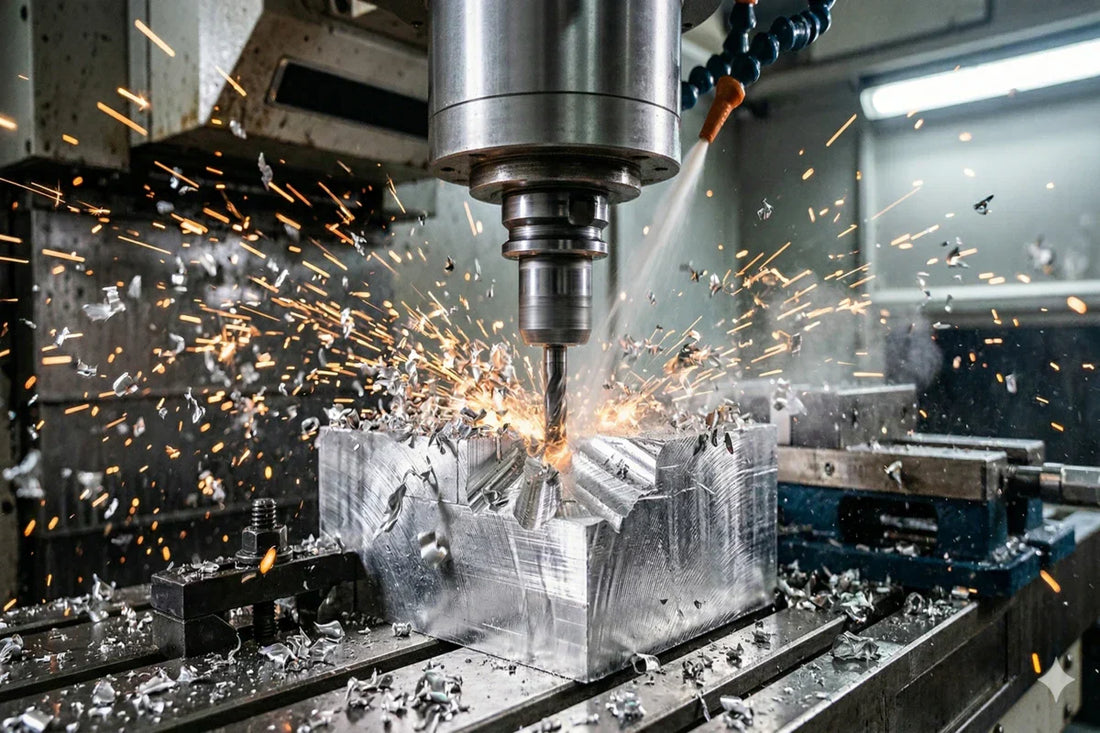

A CNC milling machine is a computer-controlled machine tool that shapes solid materials — metal, plastic, wood — by removing material with a rotating cutting tool. It reads a digital program (G-code) to move the cutter along multiple axes with precision, producing parts with tolerances as tight as ±0.01 mm, depending on the machine's build quality and configuration. Unlike 3D printing, which builds up material layer by layer, CNC milling starts from a solid block and cuts away what isn't needed.
In this guide, we'll break down the basics of CNC milling, explain how the machine works, walk through its key components, and help you figure out whether a CNC mill might be the right tool for your projects.
What Is a Milling Machine?
The foundation of subtractive manufacturing
A milling machine is a power-driven machine tool that removes material from a workpiece using a rotating cutting tool called a milling cutter. The workpiece is clamped to a table, and the cutter moves across it — or the table moves into the cutter — to shape the material into slots, pockets, contours, and flat surfaces.
The milling machine definition comes down to one principle: subtractive manufacturing. You start with a solid block of material and cut away everything that doesn't belong until your part is what remains.
Manual milling machines have been used in manufacturing since the 1800s and are still found in many shops today. An experienced machinist can produce accurate parts on one, but it requires years of training and constant attention. Repeatability is also a real challenge — making the same part twice at the same tolerances depends entirely on the operator's skill and consistency.
What Is CNC Milling?
CNC stands for Computer Numerical Control. In CNC milling, the machine's movements are controlled by a computer program rather than by a human hand. The operator sets up the workpiece, loads the program, and the machine executes every cut — precisely, consistently, and without needing to be guided through each step.
This shift has concrete implications. A CNC milling machine can hold tolerances of ±0.01 mm or tighter, run the same program hundreds of times and produce identical parts, and execute complex three-dimensional cuts that would be practically impossible to replicate manually at scale.
Here's how the CNC milling machining process works from start to finish:
Step 1: Design
Everything starts with a 3D digital model, typically created in CAD (Computer-Aided Design) software like Fusion 360, SolidWorks, or Rhino.
Step 2: CAM Programming
The 3D model is imported into CAM (Computer-Aided Manufacturing) software, which generates toolpaths — the specific routes the cutting tool will follow, along with parameters like cutting speed, depth of cut, and step-over distance.
Step 3: G-Code Generation
The CAM software converts those toolpaths into G-code, the universal language CNC machines understand. G-code tells the machine where to move, how fast, and how deep to cut.
Step 4: Machining
The CNC milling machine reads the G-code and executes the cuts automatically — with no manual intervention needed once the program is running.
This automation ensures the production of consistent, high-tolerance parts. Unlike manual methods, a CNC milling machine can execute the same complex sequence indefinitely with identical precision—providing a level of scalability and repeatability that manual machining simply cannot achieve at an industrial scale.
What Does a CNC Milling Machine Do?
A CNC milling machine can perform a wide range of operations that would be difficult — or practically impossible — to achieve manually with the same level of consistency:
- Face milling — Cutting flat, smooth surfaces across the top of a workpiece
- Contour milling — Following the profile of a curved or complex 3D shape
- Pocket milling — Carving recessed areas or cavities into material
- Drilling and boring — Creating precise holes at exact locations
- Thread milling — Cutting internal or external threads without a tap
- Materials CNC Milling Can Handle
One of the most compelling things about CNC milling machining is how versatile it is with materials. Common options include:
- Metals: Aluminum is the most common — it machines fast and cleanly. Steel, brass, copper, and titanium cover more demanding applications.
- Plastics: Acrylic, ABS, Delrin, PEEK, and nylon all machine well, useful for functional prototypes and end-use parts.
- Wood and composites: Hardwood, MDF, carbon fiber, fiberglass, and G10 are all viable. Carbon fiber in particular benefits from CNC precision over hand cutting.
- Foam and wax: Frequently used for concept models, casting patterns, and formwork.
The material you can practically machine depends on the machine's spindle power and structural rigidity. A well-built desktop mill handles aluminum and engineering plastics without issue; heavier cuts in steel require a more rigid platform with a more powerful spindle.
What Can You Actually Make?
- Custom aluminum enclosures for electronics
- Precision mechanical brackets, mounts, and fixtures
- Mold cavities for casting or injection molding
- Prototype consumer product housings
- Artistic reliefs and sculptural forms in wood or metal
- Functional replacement parts with tight dimensional requirements
- Key Components of a CNC Milling Machine
Key Components of a CNC Milling Machine
To really understand what a CNC milling machine is, it helps to know what's inside it. Here are the components that matter most:
Spindle
The spindle is the heart of the machine. It holds and rotates the cutting tool at high speed. Spindle speed — measured in RPM — directly affects cut quality, surface finish, and what materials can be machined effectively. Higher RPM generally means better results on softer materials; harder materials often require lower RPM with higher torque.
Worktable
The worktable is where the workpiece is secured using clamps, vises, or custom fixtures. In most CNC mills, the table moves along the X and Y axes, while the spindle moves along the Z axis.
Cutting Tools
CNC mills use a variety of cutting tools depending on the task — end mills, ball nose mills, face mills, drills, and more. Each tool geometry is designed for specific operations and materials. Selecting the right tool is critical for clean results and tool longevity.
CNC Controller
The controller is the brain of the machine. It interprets G-code and sends precise movement commands to the machine's servo or stepper motors. Modern controllers often feature touchscreen interfaces and direct integration with CAM software.
Axes of Motion
The number of axes determines what geometries the machine can produce — and how much manual repositioning is required between operations:
- 3-axis: Moves in X, Y, and Z. Handles the vast majority of common milling tasks. The tool can only approach the workpiece from directly above.
- 4-axis: Adds rotation around one axis, allowing features to be machined on multiple faces without re-fixturing.
- 5-axis: Adds rotation around two axes simultaneously. The tool can approach from almost any angle — enabling complex undercuts, compound angles, and flowing 3D surfaces in a single setup.
With 3-axis, a part with features on multiple faces needs to be repositioned manually between operations — each repositioning introduces potential alignment error. With 5-axis, those features are often machined in one continuous program, with better accuracy and significantly less setup time.
What Are CNC Mills?
"CNC mills" is the everyday shorthand for CNC milling machines — the terms are interchangeable. Here are the main configurations and who each one is best suited for:
Vertical Milling Machine
The spindle points downward toward the table. This is the most common configuration and works well for flat surfaces, pockets, contours, and general-purpose work. Most desktop CNC mills are vertical machines. Best for: General fabrication, prototyping, most maker and studio use cases.
Horizontal Milling Machine
The spindle runs parallel to the table surface. Better suited for heavy-duty side cuts, deep grooves, and operations where chip evacuation matters. Best for: Production environments with high-volume cutting requirements.
Gantry / Bridge Mill
The spindle is mounted on a bridge structure spanning a wide, stationary table. Built for large or heavy workpieces. Best for: Aerospace tooling, large mold-making, oversized panels.
Desktop CNC Mill
A bench-top machine built around the same principles as an industrial mill — rigid frame, proper spindle, real axis control — in a compact footprint. The tradeoff is working envelope and maximum material removal rate, not fundamental capability.
Desktop 5-axis CNC mills take this further: simultaneous 5-axis motion in a machine that fits on a workbench. For independent makers and small studios, this means access to complex geometries that previously required a six-figure industrial machine. Best for: Makers, hardware builders, product designers, small studios.
Who Is a CNC Milling Machine For?
CNC milling has become practical for a much broader range of people than it was five years ago — driven by better CAM software, more capable desktop machines, and lower entry costs.
It's worth considering if you:
- Build physical products or prototypes and currently outsource machined parts — a CNC mill compresses the iteration cycle from days to hours
- Work with materials that routers and laser cutters can't handle reliably — aluminum, brass, hard plastics, carbon fiber
- Need dimensional accuracy that 3D printing doesn't consistently deliver — press fits, bearing seats, threaded interfaces, and closely mating parts
- Do low-volume production where machining in-house is faster and more cost-effective than batch quotes from a machine shop
- The learning curve is real but manageable. Most people with CAD experience pick up the basics of CAM programming in a few weeks. Workholding, tool selection, and feeds and speeds take longer to develop intuition for — but there are strong communities and resources around every major platform.
FAQs About CNC Milling
1. Is CNC a milling machine?
No. CNC (Computer Numerical Control) is a control technology, not a type of machine. It refers to using computer programs to automate machine movement. A CNC milling machine is a milling machine that uses CNC control — CNC describes how it operates, not what it is. The same technology also powers CNC lathes, routers, laser cutters, and plasma cutters.
2. What is the difference between a milling machine and a CNC machine?
A milling machine is a specific type of machine tool. "CNC machine" is a broader term for any machine tool controlled by computer programs rather than by hand.
The practical comparison is manual vs. CNC milling: on a manual mill, every movement depends on the operator's skill. On a CNC mill, a computer program executes the cuts — delivering tighter tolerances, consistent repeatability, and the ability to produce complex geometry that manual operation can't reliably achieve.
3. Is a CNC milling machine the same as a CNC router?
No. Both use rotating cutting tools and G-code, but they're built for different jobs. CNC mills have rigid frames and high-torque spindles designed to cut hard materials — metals, engineering plastics, composites — at tight tolerances. CNC routers use lighter frames and higher RPM spindles optimized for wood, foam, and soft plastics, trading rigidity for speed.
If you're machining metal parts with dimensional requirements, you need a mill.
4. What software do I need for CNC milling?
Two types:
CAD/CAM software — to design your part and generate toolpaths. Fusion 360 is the standard starting point: it combines CAD and CAM in one package and is free for personal use. Mastercam and VCarve are common professional alternatives.
Machine controller — reads the G-code and runs the machine. Most desktop CNC mills come with their own controller software, so you don't need to choose this separately.
5. What materials can be CNC milled?
CNC milling works across metals (aluminum, steel, brass, titanium), engineering plastics (ABS, Delrin, Nylon, PEEK), wood and composites (hardwood, MDF, carbon fiber, fiberglass), and softer materials like tooling foam and machinable wax for prototyping. What you can practically machine depends on your machine's spindle power and rigidity — a well-built desktop mill handles aluminum and plastics without issue; heavy steel cutting requires a more powerful platform.
6. What is the difference between 3-axis and 5-axis CNC milling?
Axis count determines what angles the tool can approach the workpiece from. 3-axis moves in X, Y, and Z — the tool always points straight down, so any feature on a different face requires manually repositioning the part. 5-axis adds two rotational axes, letting the tool tilt and approach from almost any angle — enabling undercuts, compound angles, and complex 3D surfaces in a single setup, with better accuracy and less time spent on fixturing.
Conclusion
A CNC milling machine is a computer-controlled subtractive manufacturing tool — it removes material from a workpiece with precision to produce complex 3D parts. That's the textbook definition, and it's accurate.
What it means in practice is a direct line from a digital model to a physical part, with tolerances, repeatability, and material options that other desktop fabrication tools don't offer. For anyone who works with physical objects — hardware, products, art, functional mechanisms — a CNC mill expands what's possible to build without relying on outside vendors for every machined part.
