From Titanium to Mirror Finish.
From roughing aluminum to finishing jewelry wax, K1's 1500W spindle doesn't slow down — and neither do you.
COMING SOON ON
The Pro-Grade Desktop 5-Axis CNC
Simplified CAM workflow powered by AI.
Sign up for Super Early Bird. Lock in $5,199 — 40% off.
Everything You Need to Create
Multi-tool ATC System
6-Slot ATC with Integrated Probe
5-Axis Simultaneous
All Axes Move as One

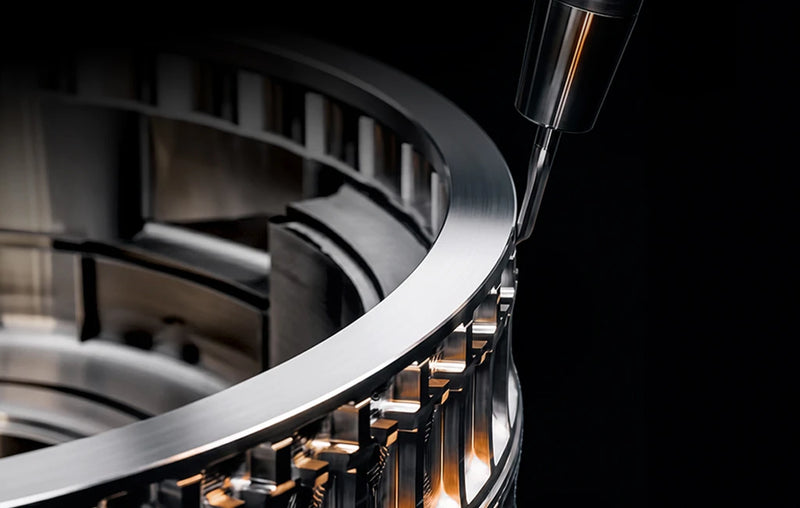

±0.01mm Industrial Precision

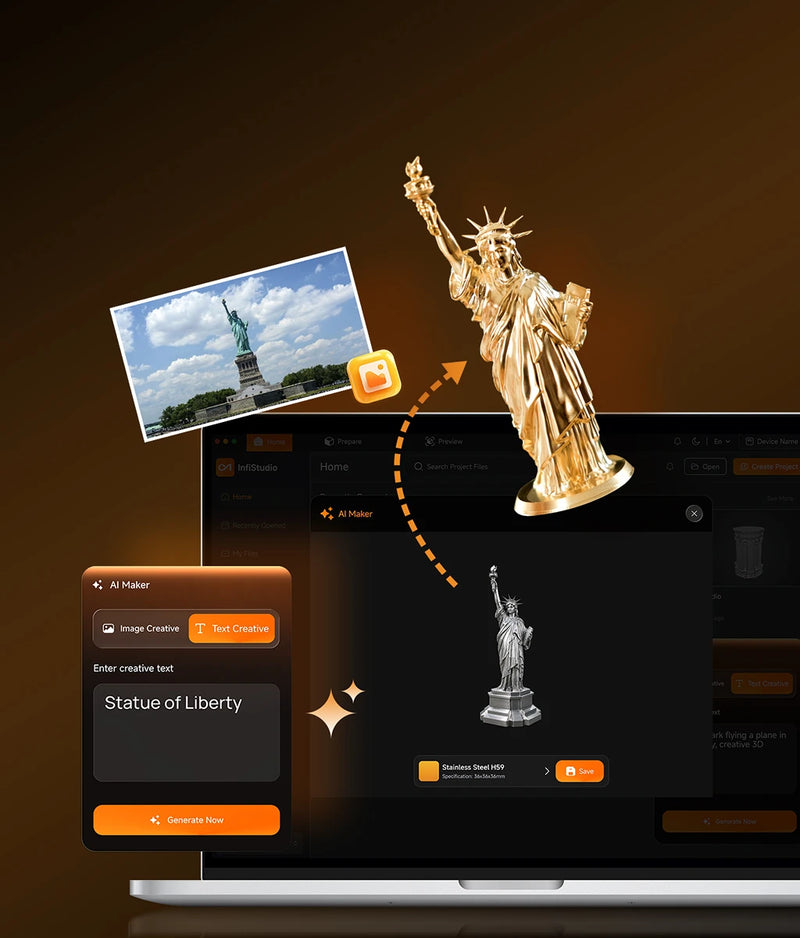

Al-Assisted Creation
Text/Image → 3D + CAM Workflow

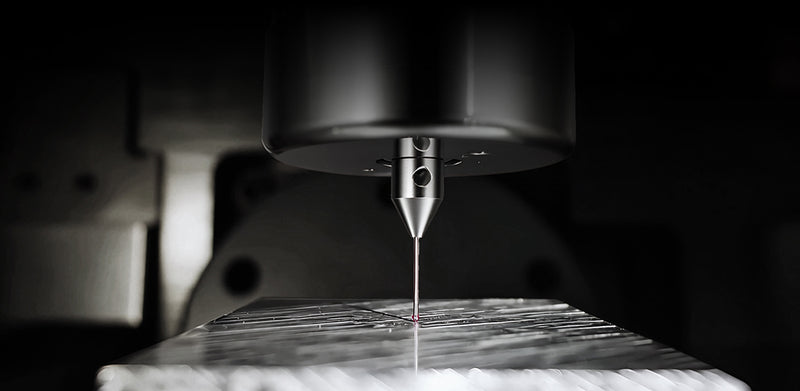

One-Tap Auto Calibration

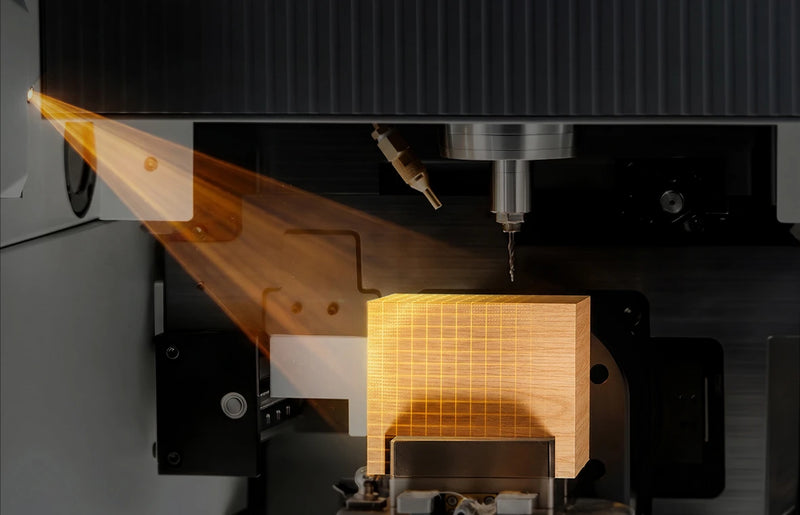

Smart Camera Setup

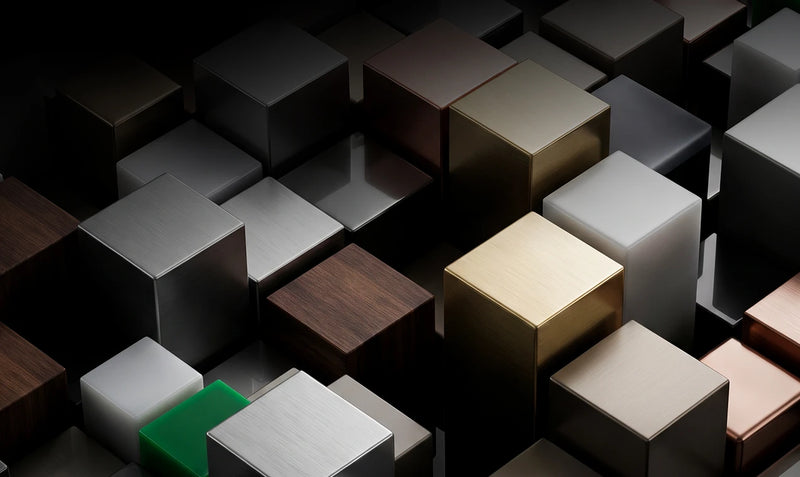

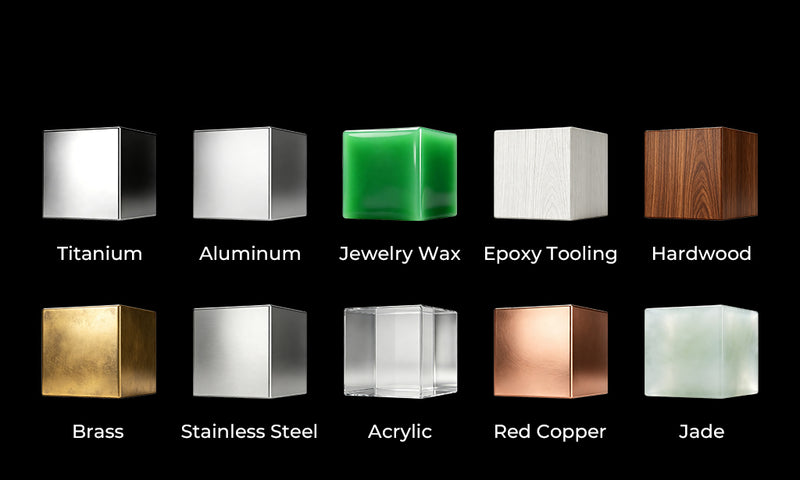

Multi-Material Capabilities
True 5-axis simultaneous motion
Create geometries once impossible in a single setup.
AI Creation Engine
From text or image to finished part — no CAD needed.
Fully automated workflow
Load the material, press start, walk away.
±0.01mm precision
The same tolerance as industrial-grade machines, in a desktop footprint.

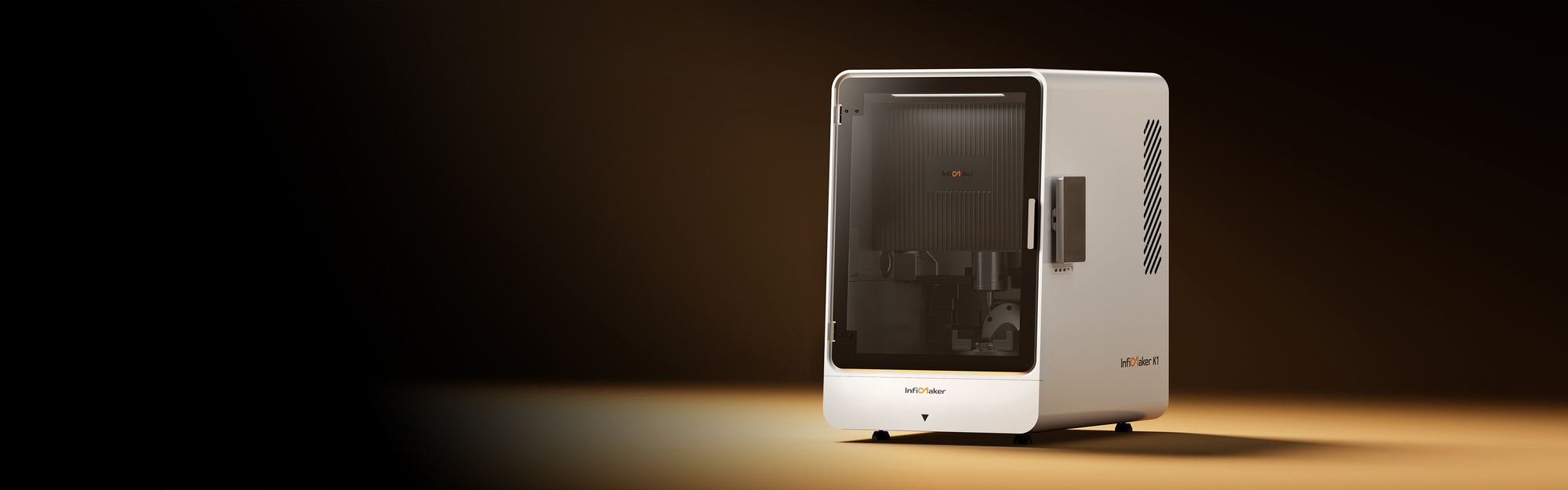

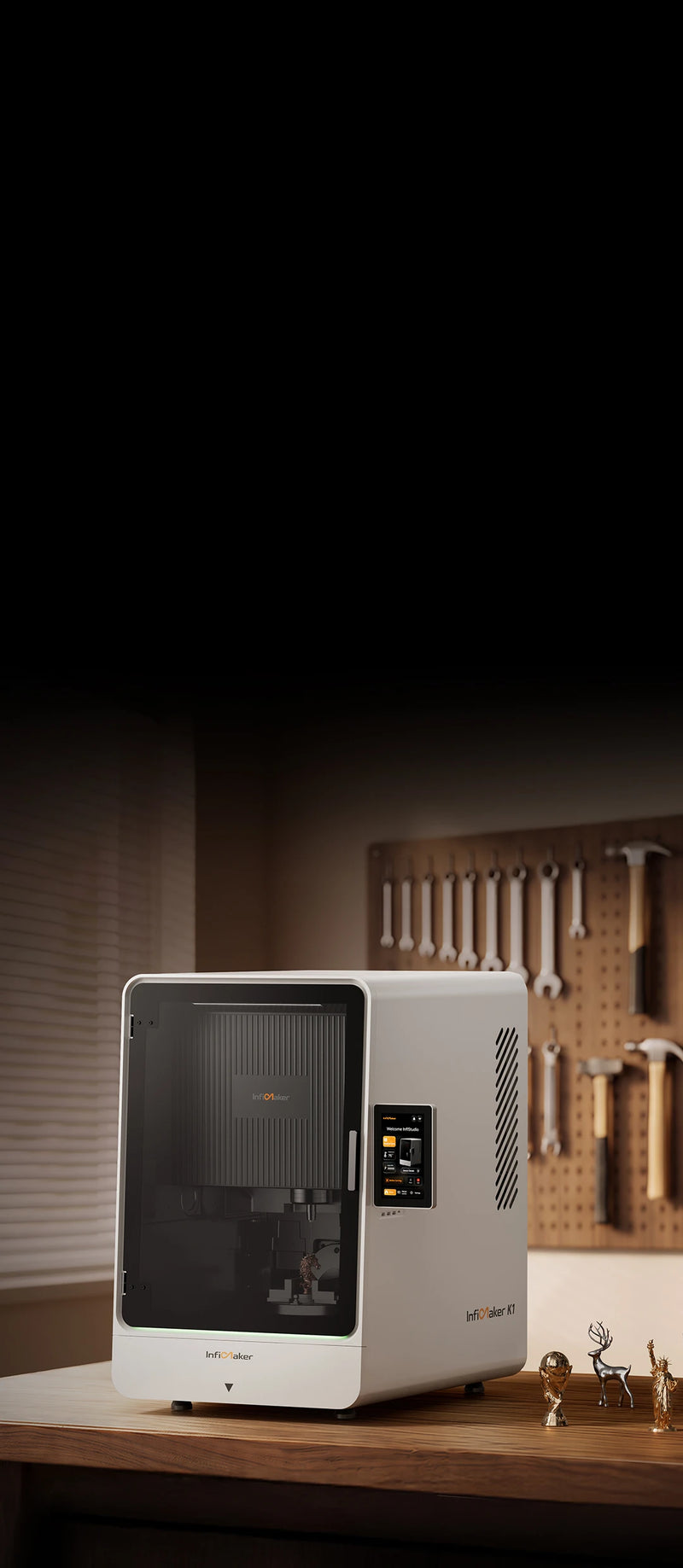

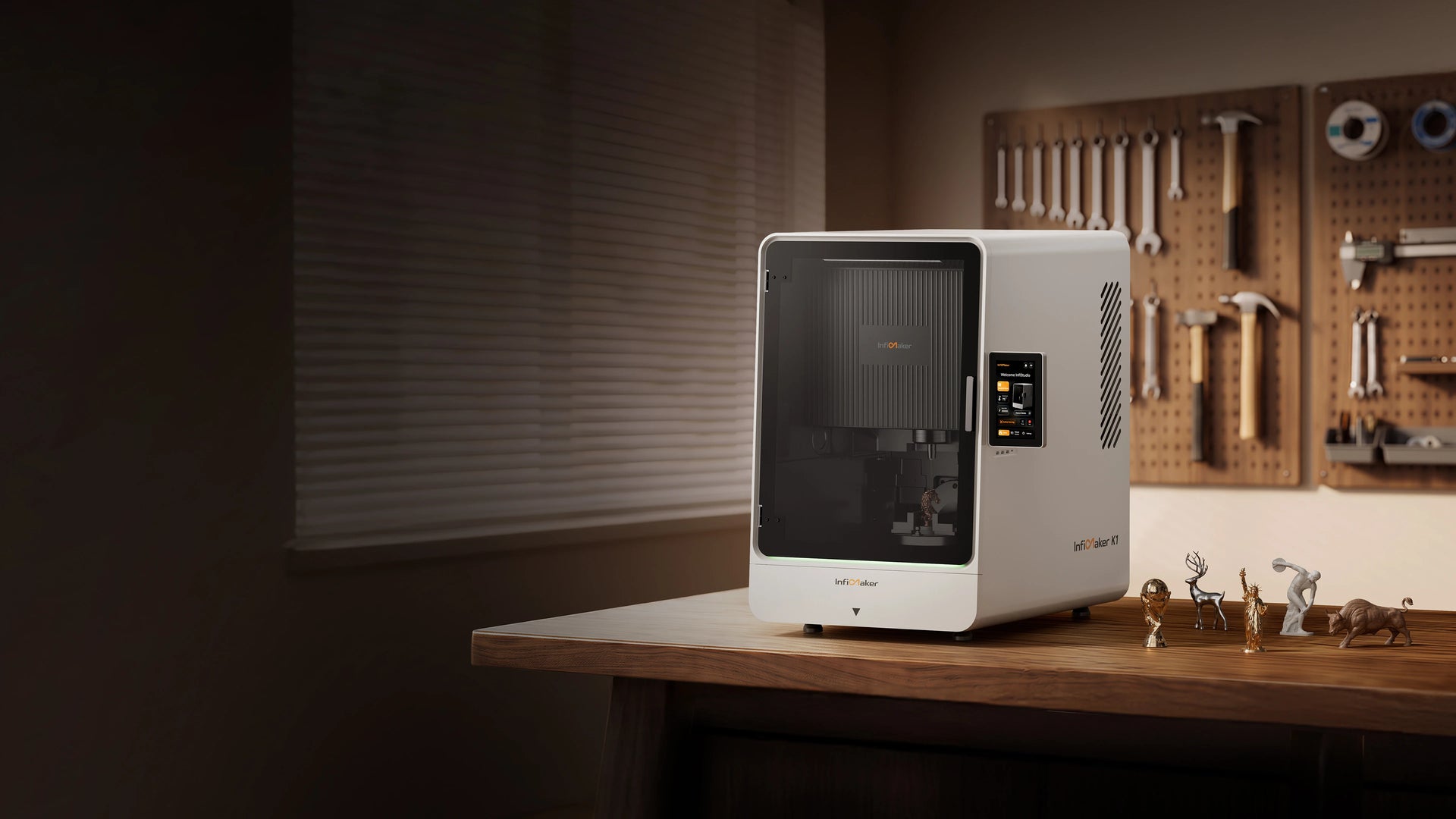

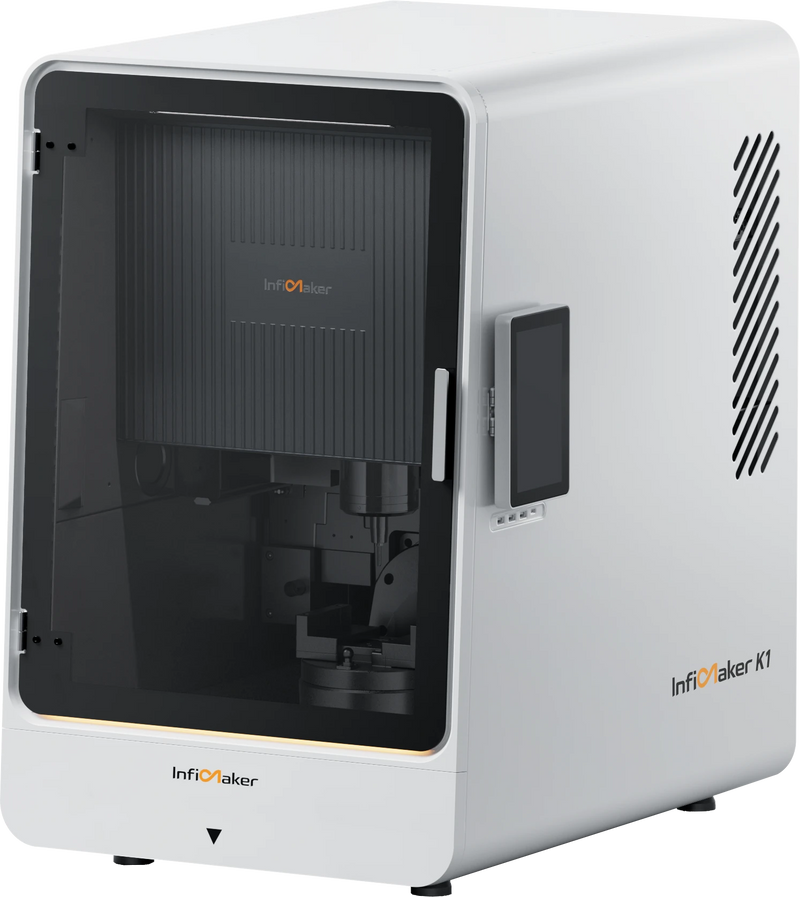

This isInfiMaker K1.
Full 5-Axis. All Moving as One.

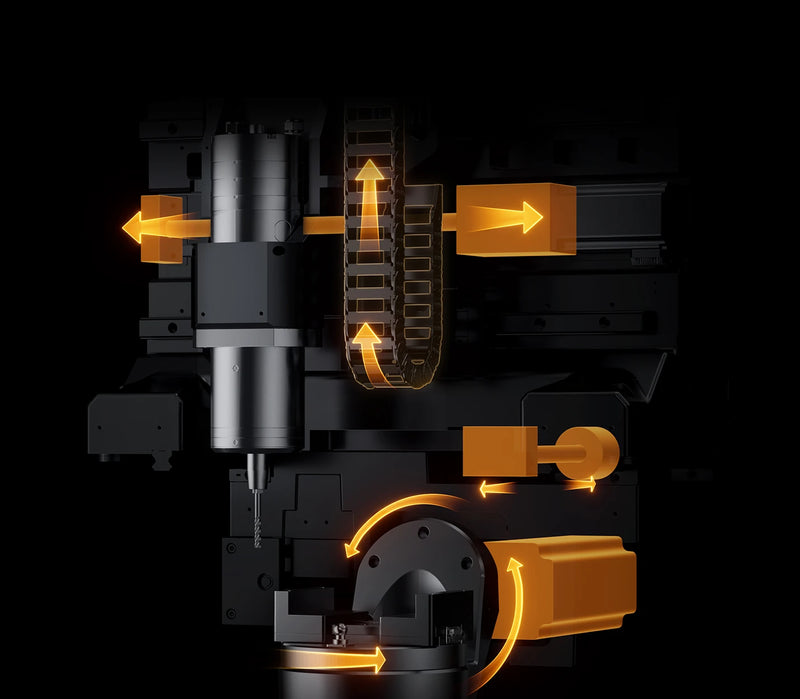

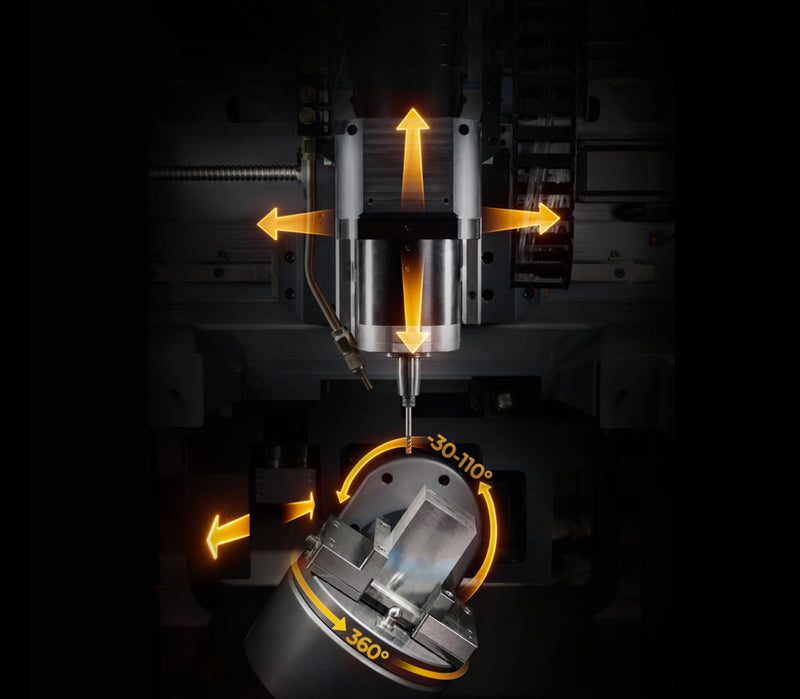

5-Axis Simultaneous
All 5 axes move simultaneously, maintaining optimal tool orientation across every surface: freeform, undercut, and compound, all in a single setup.
1500W. 20,000 RPM. 0.01mm.
±0.01mm Positioning Accuracy ｜ Redefined with 2× Precision
Fine enough to carve a hairline groove into titanium. Smooth enough that your jewelry pieces come off the machine ready to polish, not ready to file.
1500W · 20,000 RPM
120 × 120 × 120mm 5-Axis Travel
Space that never holds you back.
Nearly 2× the working volume of comparable desktop machines. Big enough for a functional part, precise enough for fine jewelry.
Idea to G-Code. No CAD Degree Required.
No manual programming required. Advanced AI generates the optimal toolpaths automatically, turning your ideas into physical creations with just one click.
Key Features

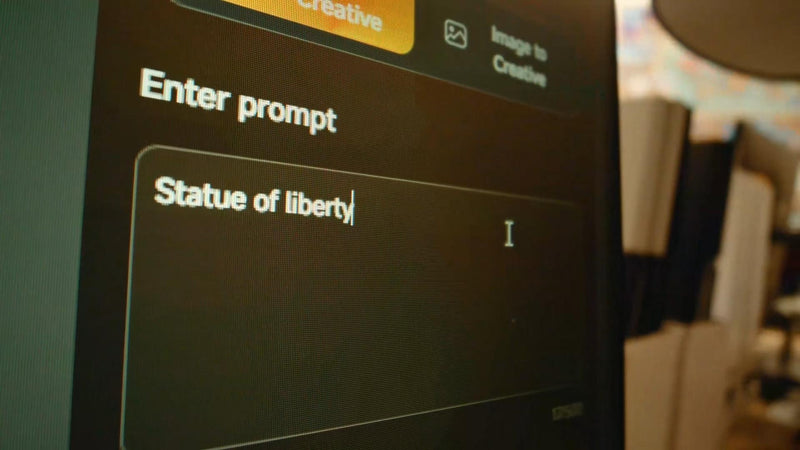

AIGC Modeling
Words/photos → 3D models
Describe what you want or drop in a reference image. K1 generates the geometry, checks it for machinability, and prepares the cut file. The whole thing happens on-device in under 2 minutes.
Cloud CAM

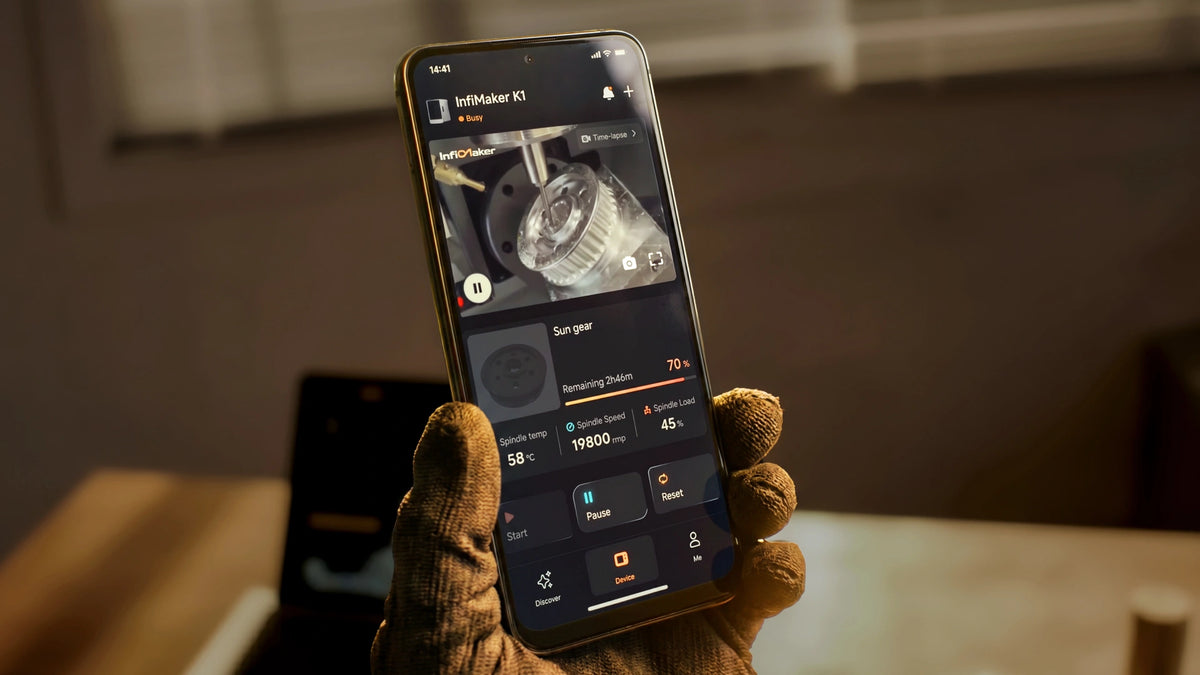

Multi-Device Control
K1 keeps you connected to every cut, every move, and every idea in progress.
AI Vision
Smart Material Detection
The built-in camera scans your stock and automatically sets feeds, speeds, and cut depth — no manual input, no setup time.

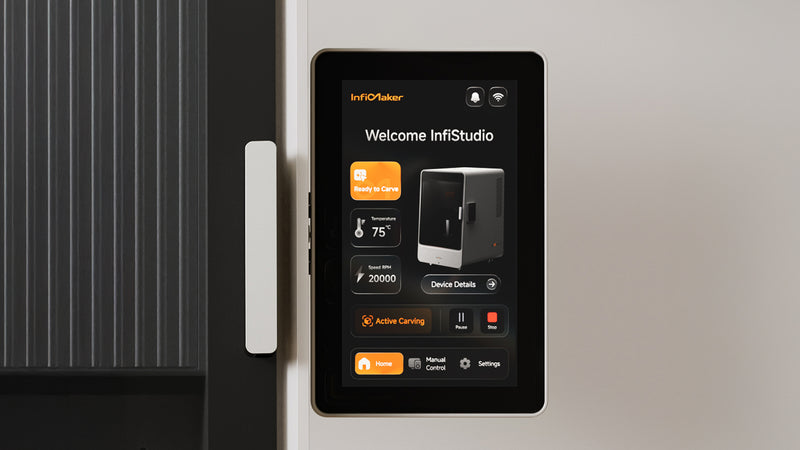

Visual UI
Direct Control Display
A purpose-built interface designed for the way you work. Every control where you expect it. Every status visible at a glance.
LOAD STOCK. PRESS START. DONE.
Set It Up. Let K1 Take Over. From stock detection to tool changes, K1 automates the workflow so you can focus on what comes next.

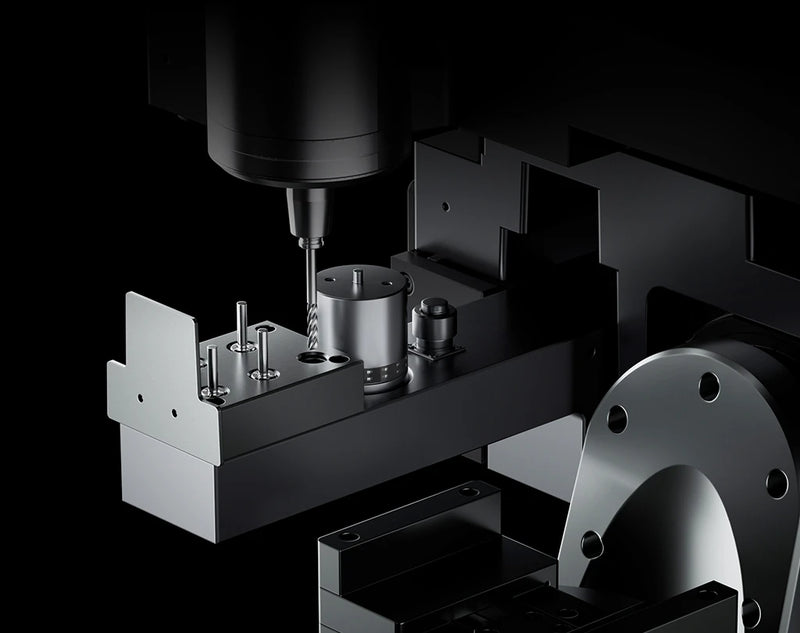

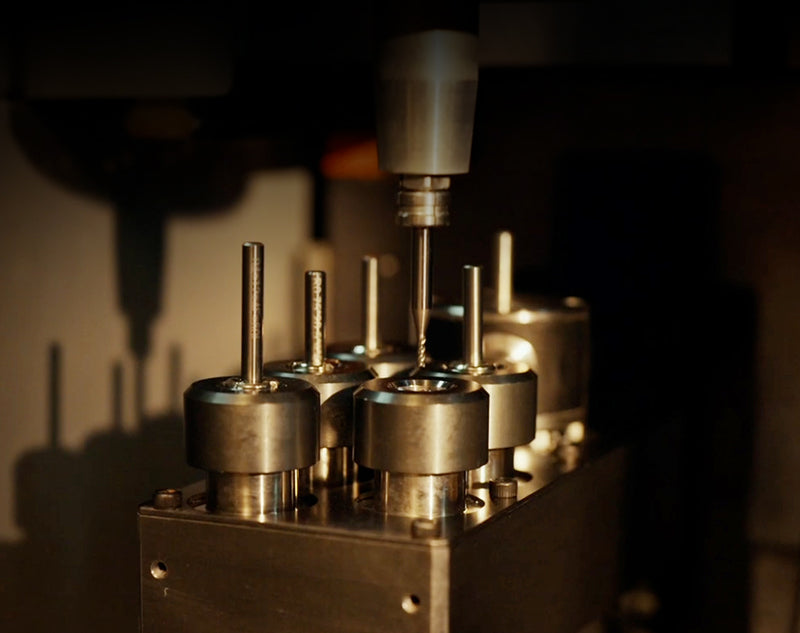

6-Slot ATC with Integrated Probe
Titanium to Wax.
One Machine.

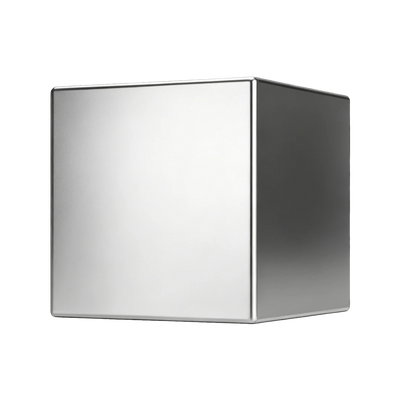

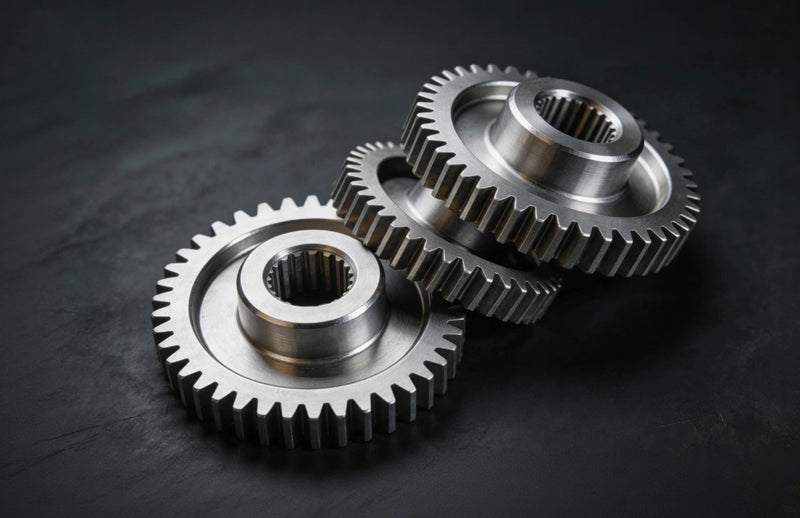

Aluminum

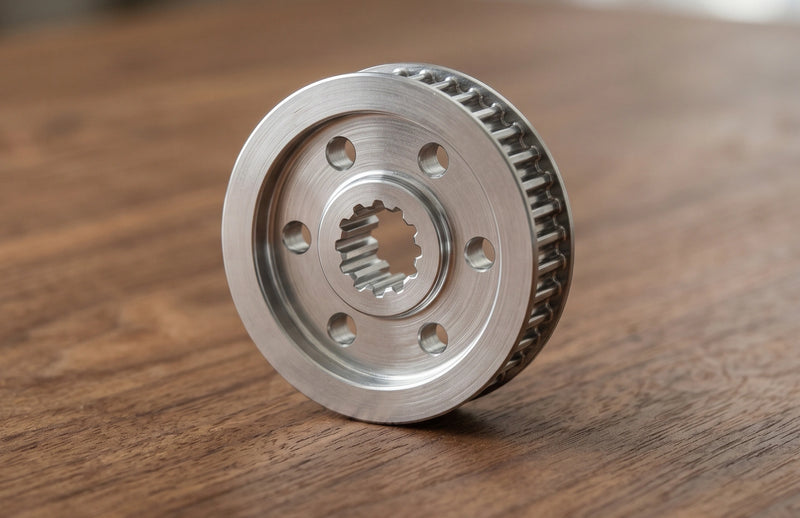

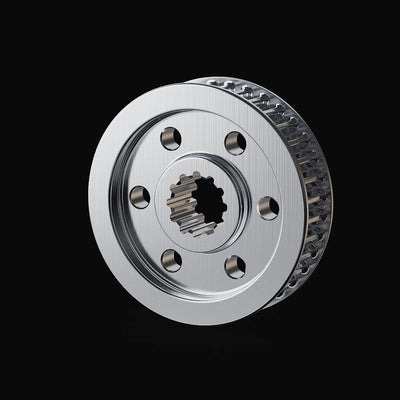

Timing Pulley

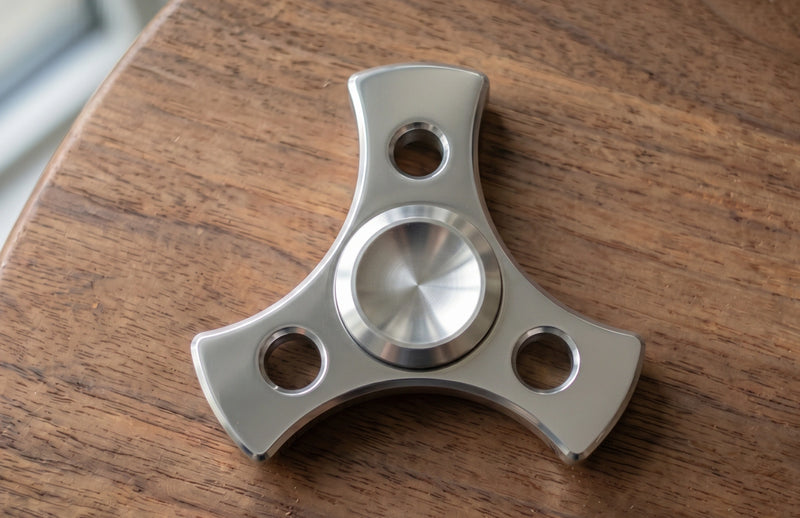

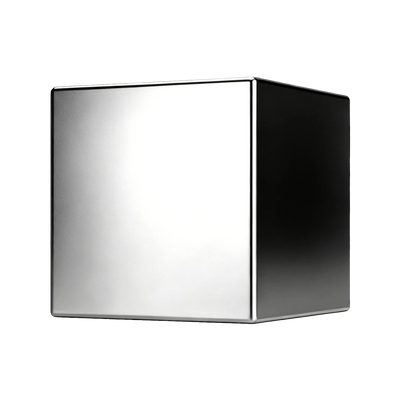

Titanium

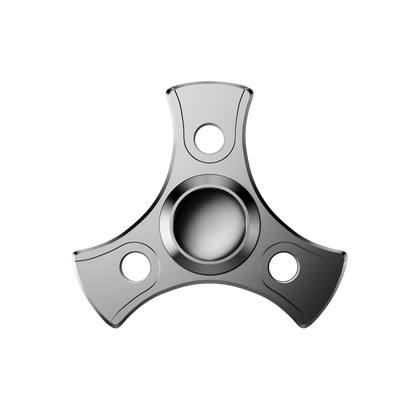

Fidget Spinner

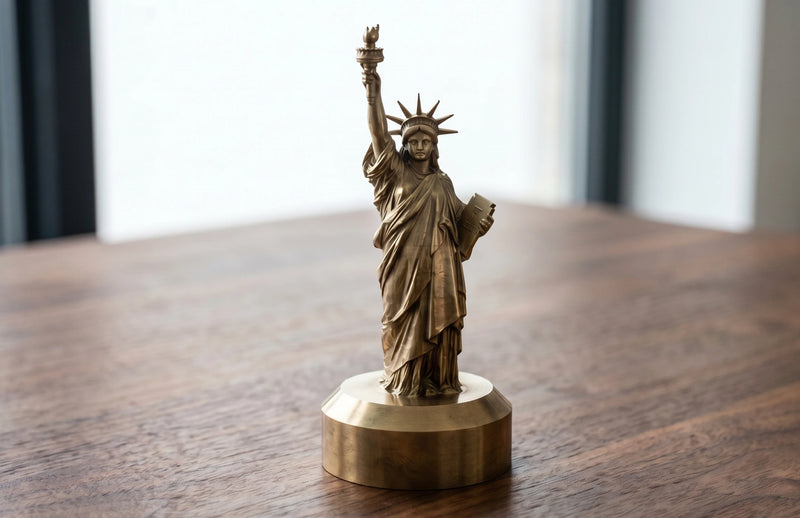

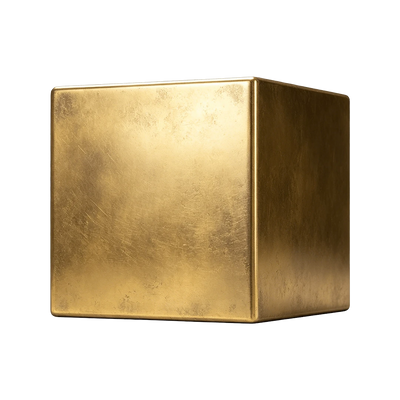

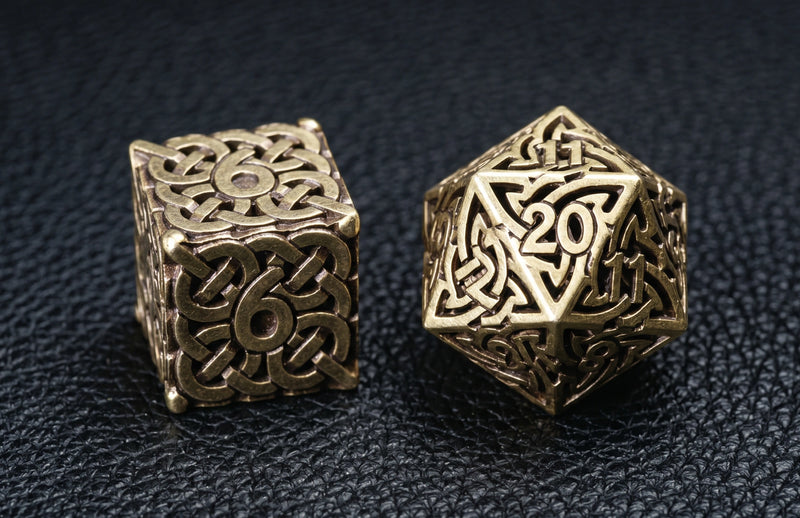

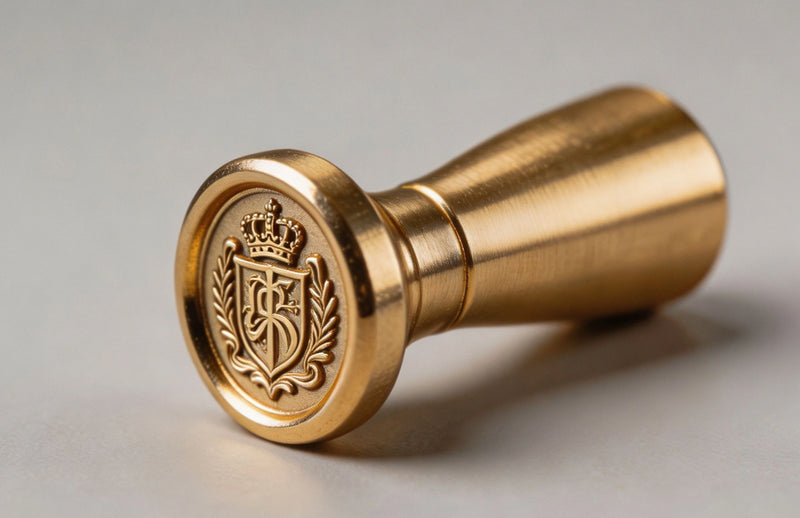

Brass

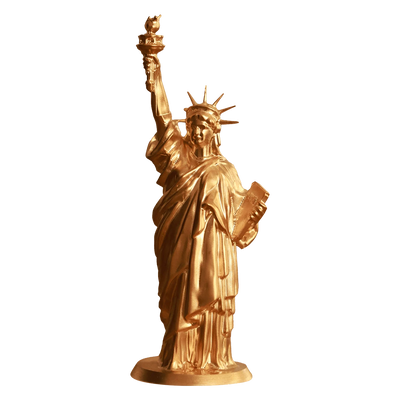

Statue of Liberty

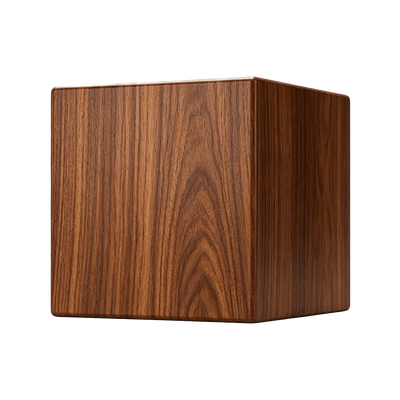

Hardwood

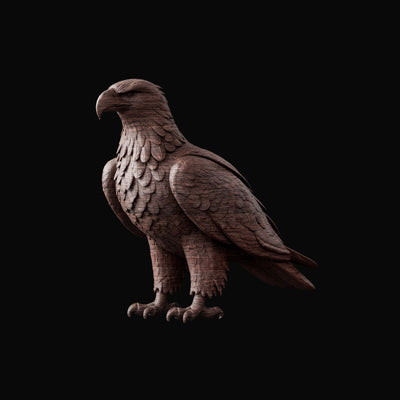

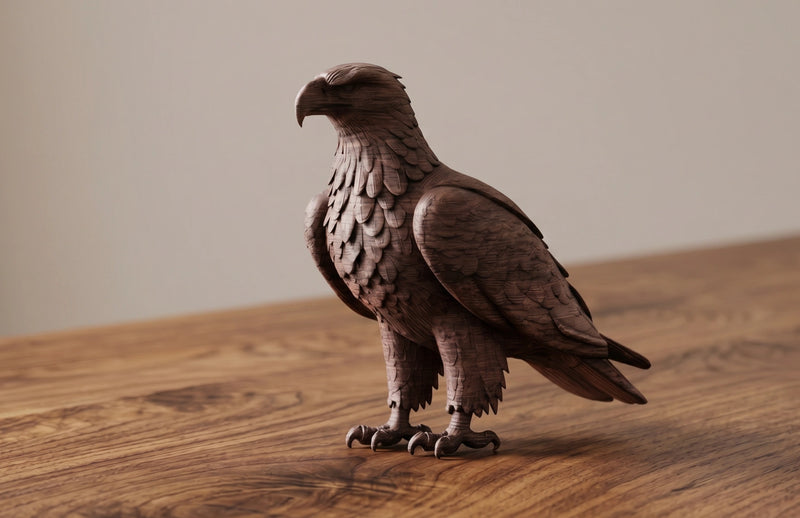

Eagle Sculpture

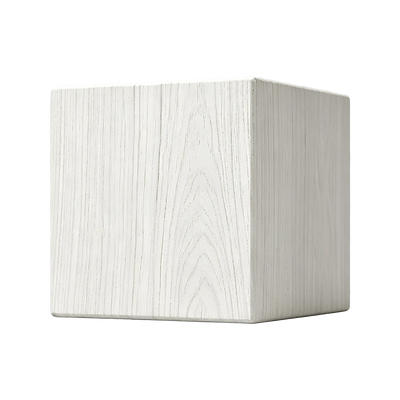

Epoxy Tooling
Yacht Model

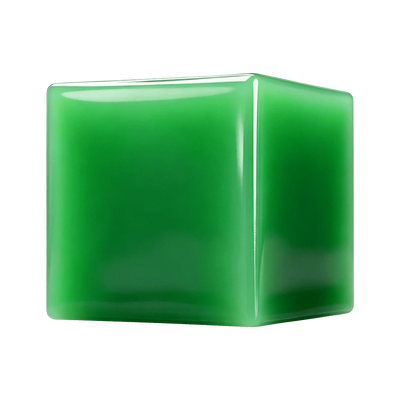

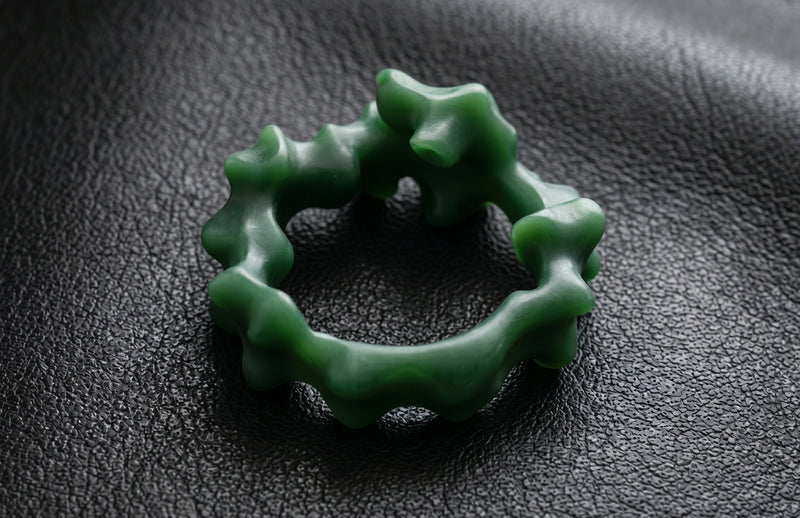

Jewelry Wax

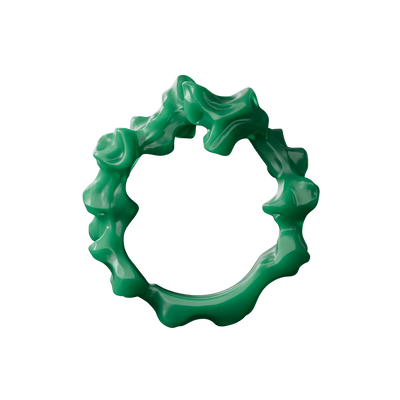

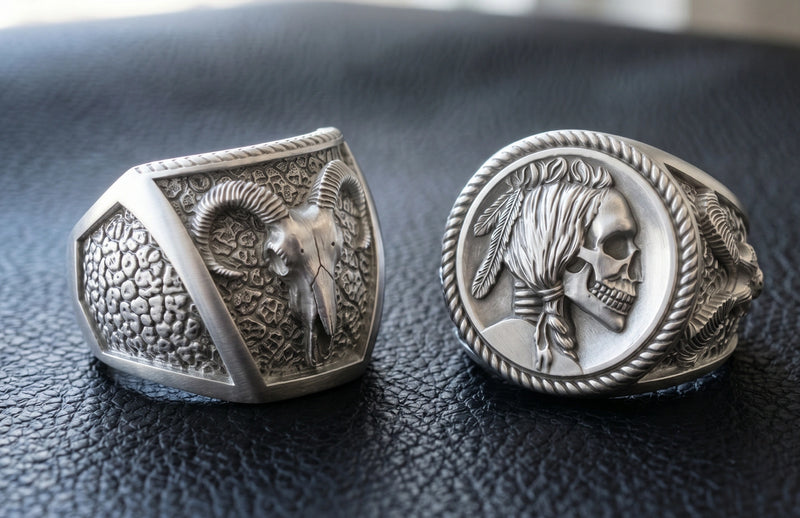

Wax Ring
EVERY JOB. FULLY CAPTURED. AI CUTS THE HIGHLIGHTS.
From raw material to final cut, every step is recorded. K1 automatically creates a highlight reel when the job is complete. Share your build in one tap.
INDUSTRIAL SPEC. WORKSHOP QUIET. HOME READY.
≤70dB 2 · Enclosed Dust Control Quieter machining and a cleaner enclosed workflow for everyday creation.

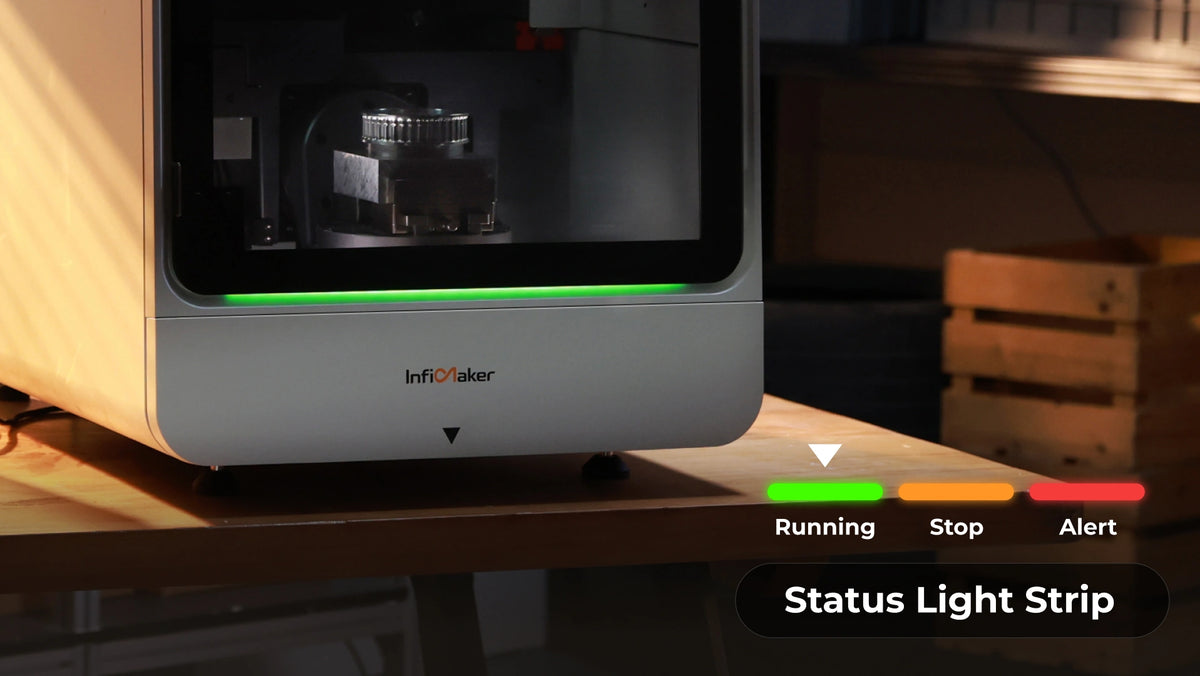

The light strip changes color with every machine state. Cutting, standby, alert — no screen needed.
COMING SOON ON
Sign Up Now
• Get Early Access & Launch Special - 40% Off
• Be first to know every update.
• Join the InfiMaker K1 Official Community.
Specifications
Hardware Parameters
Smart Numerical Control System
Motinfi™ System
X/Y/Z Axis Travel
220 x 160 x 180 mm
B-Axis Travel
-30-110 °
C-Axis Travel
360°
X/Y/Z Axis Repeatability
±0.01 mm
B/C Axis Repeatability
±40"
X/Y/Z Axis Max. Rapid Rate
4500 mm/min
X/Y/Z Axis Max. Cutting Feed Rate
2500 mm/min
B/C Axis Max. Rotation Rate
B: 15RPM (r/min) C: 30 RPM (r/min)
Spindle Power (Max)
1.5 KW
Spindle Speed
Max: 20000 RPM (r/min)
Tool Changer Capacity
5-tools automatic (ATC)
Worktable Load
≤ 15 kg
Max. Workpiece Size
5-axis Max.1
Workpiece Size: 120x120x120mm
3-axis
Workpiece Size: 220x150x150mm
3+2 axis
Workpiece Size: 170x150x150mm
Smart HD Camera
Support
System Features
Noise
< 70dB
2RTCP (Rotational Tool Center Point)
Support
Automatic Workpiece Centering
Support
Breakpoint Resume Machining
Support
MQL (Minimum Quantity Lubrication)
Support
Software Features
AIGC Image & Text Generation Model
Support (AI Maker)
Time-Lapse Generation
Support
Material Recognition
Support
Camera Monitoring
Support
Software & APP
InfiStudio (Desktop: macOS / Windows, Mobile: Android / iOS)
Others
Materials
Titanium, Steel, Aluminum, Brass, Copper, Wood, Acrylic, Wax, Jade, Resin, Engineering Plastics & Composites. 100+ machining applications
Input Voltage
100-240V AC
Rated Power
2.2KW
Dimensions
Machine Weight
Around 110kg
Machine Dimensions
28.74×21.65×23.62 inch
¹ For the maximum 5-axis workpiece size: the workpiece must be centered relative to the fixture and mounted flush against the fixture base.
² This noise level was measured under the following machining conditions: Machining stainless steel with the following toolpath parameters: 10,000 RPM, 2,000 feed rate, 0.1 mm depth of cut, and 4 mm row spacing; a D4 round-nose end mill was used; measurements were taken in an open space 1 meter away from the machine. Noise levels may vary significantly depending on the parameters used or when machining different materials with the same parameters.
