Manufacturing has come a long way from manual milling and hand-turned lathes. Today, computer numerical control (CNC) technology drives precision at a level that would have been unimaginable a few decades ago. Among the most significant advances in this field is 5-axis CNC machining — a process that allows cutting tools and workpieces to move simultaneously along five different axes. If you have ever wondered what is 5 axis CNC and why it has become such a defining technology in modern manufacturing, this guide covers everything from the fundamentals to the real-world applications shaping industries in 2026.
What Is 5-Axis CNC?
At its core, what is a 5 axis cnc machine? It is a computer-controlled machining system capable of moving a cutting tool or a workpiece along five distinct axes at the same time. A standard 3-axis CNC milling machine operates along three linear directions — left-right, front-back, and up-down. A 5-axis CNC machine adds two rotational axes to those three, allowing the tool to tilt and rotate around the workpiece from virtually any angle.
Think of it this way: a 3-axis CNC is like drawing on a flat piece of paper. A 5-axis CNC is like sculpting around a sphere — the cutting tool can reach underneath, around the sides, and at compound angles that would otherwise require multiple setups on a conventional machine. This capability is what makes 5-axis CNC machining the backbone of industries that demand tight tolerances and complex geometries.

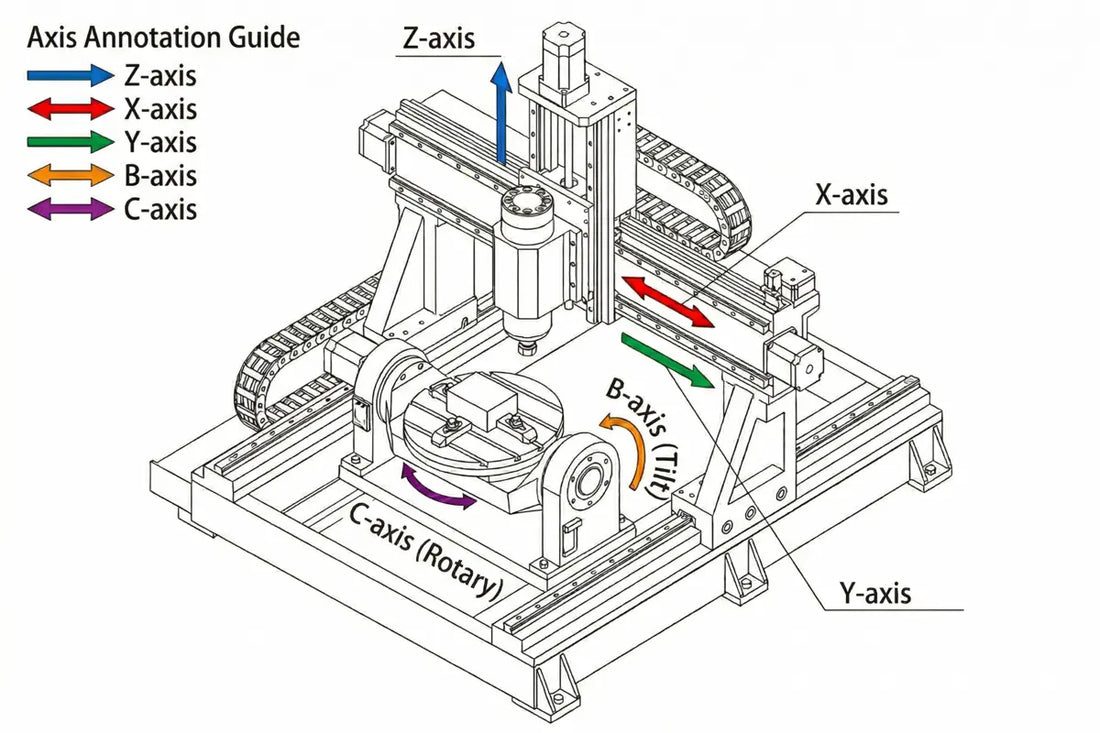

Understanding the 5 Axes: X, Y, Z, A, B, and C
To fully grasp what is 5 axis CNC, it helps to break down each axis individually. Every 5-axis CNC machine relies on a combination of linear and rotational movements working in concert. While the three linear axes are always the same, machines differ in which two rotational axes they use — and that choice affects what the machine excels at.
X, Y, Z — The Linear Axes
The first three axes are linear and form the foundation of all CNC machining:
- X-axis controls horizontal movement from left to right along the length of the workpiece.
- Y-axis controls horizontal movement from front to back along the width.
- Z-axis controls vertical movement up and down, determining how deep the cutting tool penetrates the material.
These three axes allow a CNC machine to shape material in three dimensions — essentially defining the width, depth, and height of a part.
The Rotational Axes: A, B, and C
Beyond the three linear axes, CNC machines can incorporate up to three rotational axes. Each one rotates around a different linear axis:
- A-axis rotates around the X-axis. The workpiece tilts or spins along the left-right horizontal plane, enabling cylindrical features, angled holes, and contoured surfaces.
- B-axis rotates around the Y-axis. The workpiece (or tool head) tilts perpendicular to the X-axis, which is particularly effective for machining angled surfaces on tall or long parts.
- C-axis rotates around the Z-axis. The workpiece spins on the vertical axis, much like a turntable — ideal for rotational symmetry and circular features.
A 5-axis CNC machine uses two of these three rotational axes combined with X, Y, and Z. The specific pairing depends on the machine design and the type of work it is built for:
- A + B is common in trunnion-style industrial machines and is well-suited for large, heavy workpieces that tilt on a rotary table.
- B + C is frequently found in compact and desktop 5-axis systems. The B-axis provides tilt capability while the C-axis offers continuous rotation, making this combination versatile for a wide range of part geometries — from complex prototypes to artistic pieces.
- A + C appears in many swivel-head configurations, where the spindle head rotates rather than the table.
The key takeaway: all three rotational axes achieve the same fundamental goal — giving the cutting tool access to the workpiece from multiple angles. The choice of which two to use comes down to machine architecture and the intended application.
How 5-Axis CNC Machining Works
Understanding what is a 5 axis cnc machine also means understanding how CNC machines work at a fundamental level.The process follows a clear sequence from digital design to finished part.
Design and Programming
Everything starts with a 3D CAD (Computer-Aided Design) model. The designer creates a precise digital representation of the part, specifying dimensions, tolerances, and material properties. This model is then imported into CAM (Computer-Aided Manufacturing) software, which generates the toolpaths — the exact routes the cutting tool will follow. The CAM software converts these toolpaths into G-code, the programming language that tells the CNC machine how to move each axis.
Simultaneous 5-Axis vs. 3+2 Axis
This is an important distinction. True 5-axis CNC machining means all five axes move simultaneously during cutting. The tool continuously adjusts its angle relative to the workpiece, maintaining optimal cutting geometry throughout the entire operation. This is called simultaneous or continuous 5-axis machining.
In contrast, 3+2 (or indexed) machining positions the workpiece at a fixed angle using the two rotational axes, locks them in place, and then performs standard 3-axis cutting. While 3+2 is simpler to program and can handle many angled features, it cannot produce the continuous, flowing contours that simultaneous 5-axis enables.
The Cutting Process
Once the G-code is loaded and the workpiece is secured, the CNC controller coordinates the movement of all five axes in real time. Servo motors drive each axis, and feedback systems continuously verify position to maintain accuracy. The result is a finished part that often requires no secondary operations — a significant advantage over conventional machining methods.
Major Benefits of 5-Axis Machining
The advantages of what is 5 axis CNC extend well beyond the ability to cut at angles. Here are the four primary benefits that set it apart from fewer-axis alternatives.
Reduced Setup Time
On a 3-axis CNC machine, machining multiple faces of a part means unclamping, repositioning, and reclamping the workpiece — sometimes several times. Each repositioning introduces alignment errors and adds labor time. A 5-axis CNC machine can access up to five sides of a part in a single setup, dramatically reducing changeover time and cumulative error.
Complex Geometries
Some shapes simply cannot be produced on a 3-axis machine, no matter how many setups you use. Turbine blades, impellers, deep cavities with undercuts, and compound-curved surfaces are all practical applications of 5-axis CNC machining. The tool can tilt into areas that would be unreachable on a conventional machine, unlocking design possibilities that would otherwise require casting or additive manufacturing.
Improved Surface Finish
Because the cutting tool can maintain an optimal angle of engagement with the workpiece at all times, 5-axis CNC consistently delivers superior surface finishes. Shorter, stiffer tools can be used since the tool does not need to reach deep into cavities — this reduces deflection and vibration, which are the primary causes of poor surface quality.
Enhanced Tool Life
Reduced vibration and optimized cutting angles also mean less wear on the cutting tool itself. Tools last longer between changes, which lowers per-part tooling costs and reduces machine downtime. For shops running production batches, this translates directly into better margins.
5-Axis vs. 3-Axis CNC: What's the Difference?
When evaluating what is a 5 axis cnc machine against a conventional 3-axis system, the differences come down to capability, efficiency, and cost. The table below highlights the key contrasts.
|
Feature |
3-Axis CNC |
5-Axis CNC |
|
Number of Axes |
3 linear (X, Y, Z) |
3 linear + 2 rotational |
|
Setup Requirements |
Multiple setups for multi-sided parts |
Often completed in one setup |
|
Geometric Complexity |
Flat or mildly contoured surfaces |
Compound curves, undercuts, deep cavities |
|
Surface Finish |
Good, but may require secondary finishing |
Superior, often requiring no post-processing |
|
Typical Cost Range |
$5,000 – $50,000 |
$50,000 – $500,000+ (industrial) |
A 3-axis machine remains the right choice for simple flat parts and high-volume production of basic geometries. But when a project involves complex angles, tight tolerances across multiple faces, or materials that demand minimal tool pressure, 5-axis CNC delivers results that fewer-axis machines simply cannot match.
What Can You Build with a 5-Axis CNC?
The practical output of what is 5 axis CNC becomes clear when you look at the range of parts it can produce. Here are some of the most common categories.
Complex Curved Parts: Turbine blades, impellers, propellers, and any component defined by flowing compound surfaces. These parts require the tool to continuously change its angle of approach — something only simultaneous 5-axis can provide.
Multi-Sided Parts Without Repositioning: Engine blocks, valve bodies, and structural brackets with features on multiple faces. A 5-axis CNC machine can complete all machining in one clamp, preserving alignment across every surface.
Sculptures and Artistic Pieces: Artists and designers increasingly use 5-axis CNC to create intricate sculptures, architectural models, and custom signage that would be impossible to produce by hand or on a 3-axis machine.
Custom Fixtures and Jigs: Manufacturing often requires specialized holding devices. With 5-axis CNC, these can be produced quickly and with high precision, reducing lead times for downstream production.
Prototypes with Tight Tolerances: Engineers validating new designs need parts that accurately reflect final production geometry. A 5-axis CNC machine produces functional prototypes that closely match the specifications of injection-molded or cast production parts.
Industries That Rely on 5-Axis CNC
Understanding what is a 5 axis cnc machine also means recognizing the industries that depend on it daily.
Aerospace: Turbine blades, structural brackets, and engine housings demand tolerances as tight as ±0.001 inches. The aerospace sector was among the earliest adopters of 5-axis CNC machining, and it remains the largest industrial consumer of this technology.
Medical: Orthopedic implants, surgical instruments, and dental prosthetics require biocompatible materials and flawless surface finishes. 5-axis CNC enables manufacturers to meet these stringent standards while producing patient-specific custom parts efficiently.
Automotive: High-performance engine components, transmission housings, and aerodynamic prototypes all benefit from the multi-sided capability and tight tolerances that a 5-axis CNC machine provides.
Mold and Die Making: Injection molds, stamping dies, and casting patterns often contain deep cavities and complex parting lines. 5-axis CNC produces these tools faster and with better surface quality than conventional methods.
Makers and Small Workshops: This is where the landscape is shifting rapidly. Historically, 5-axis CNC was confined to large factories with six-figure budgets. In 2026, a growing community of engineers, product designers, and hardware entrepreneurs are beginning to explore what 5-axis CNC can do at the desktop scale — a trend that is fundamentally changing who has access to this technology.
Why 5-Axis CNC Is Becoming More Accessible in 2026
For a long time, asking what is a 5 axis cnc machine meant confronting a stark reality: these systems cost hundreds of thousands of dollars, required specialized operators, and occupied significant floor space. That barrier kept 5-axis technology firmly within the domain of large aerospace contractors, automotive OEMs, and dedicated job shops.
Several factors are shifting this equation in 2026.
Software Democratization: CAM tools like Fusion 360, FreeCAD, and other accessible platforms now support multi-axis toolpath generation with interfaces designed for users who are not career machinists. The learning curve, while still real, is far less steep than it was even five years ago.
Hardware Innovation: A new generation of compact 5-axis machines is emerging — systems designed to fit on a workbench rather than a factory floor. These machines use lighter structural materials, precision stepper and servo systems, and streamlined control electronics to deliver genuine 5-axis capability at a fraction of the traditional cost.
Crowdfunding and Direct-to-Consumer Models: Platforms like Kickstarter have accelerated the development of desktop manufacturing tools. Multiple 5-axis CNC projects have launched through crowdfunding, allowing early adopters to access the technology at pre-production prices while providing manufacturers with the capital needed to scale production.
Growing Demand for Complex Prototypes: As product development cycles shorten across industries, engineers need faster ways to produce functional prototypes with complex geometries. Sending parts to a job shop and waiting days or weeks is no longer acceptable for many teams. Having 5-axis CNC capability in-house — even at the desktop scale — is becoming a competitive advantage.
The convergence of these trends means that what is 5 axis CNC is no longer just a question for factory managers. It is increasingly relevant to mechanical engineers, product designers, and makers who want to push beyond the limitations of 3-axis machining without the overhead of industrial-scale equipment.
Frequently Asked Questions
1. What is the difference between 3-axis and 5-axis CNC?
A 3-axis CNC machine moves the cutting tool along three linear directions (X, Y, Z). A 5-axis CNC adds two rotational axes chosen from A (around X), B (around Y), and C (around Z), allowing the tool to tilt and rotate around the workpiece. This means 5-axis machines can machine multiple sides of a part in one setup and produce complex geometries that 3-axis systems cannot achieve.
2. How much does a 5-axis CNC machine cost?
Industrial 5-axis CNC machines typically range from $100,000 to over $500,000, depending on size, configuration, and brand. However, compact and desktop-oriented 5-axis machines are entering the market at significantly lower price points, making the technology more accessible to small workshops and individual engineers.
3. What materials can a 5-axis CNC machine cut?
A 5-axis CNC machine can cut the same materials as conventional CNC systems, including aluminum, steel, stainless steel, titanium, brass, copper, and a wide range of engineering plastics such as Delrin, nylon, and PEEK. The multi-axis capability does not change material compatibility — it changes how efficiently and accurately those materials can be shaped.
4. Can a 5-axis CNC machine fit on a desk?
Traditional industrial 5-axis machines are large, heavy systems designed for factory floors. However, a new category of compact 5-axis CNC machines is emerging in 2026, specifically engineered to operate on a workbench or desktop. These systems prioritize footprint and accessibility while maintaining true simultaneous 5-axis capability.
Conclusion
Understanding what is 5 axis CNC reveals why this technology has become essential across aerospace, medical, automotive, and increasingly, the maker community. The ability to machine complex geometries in a single setup, achieve superior surface finishes, and reduce production lead times makes 5-axis CNC machining a powerful advantage for anyone working with physical products.
The landscape is changing fast. What was once exclusively the domain of large factories is now reaching desktops and small workshops — and 2026 is shaping up to be the year that shift accelerates. Whether you are an engineer prototyping the next product, a designer exploring complex geometries, or a maker looking to push the boundaries of what a benchtop machine can do, the question is no longer whether 5-axis CNC is relevant to you. It is when you will get started.
At InfiMaker, we are building a desktop 5-axis CNC machine designed to bring industrial-grade multi-axis precision to your workbench. Stay updated on our progress and be the first to know when we launch — sign up for early access.
