CNC machining is one of the most widely used manufacturing processes in modern industry — yet for anyone new to it, the technology can feel like a black box. Raw material goes in, a precision part comes out, and somewhere in between, a computer is doing most of the work.

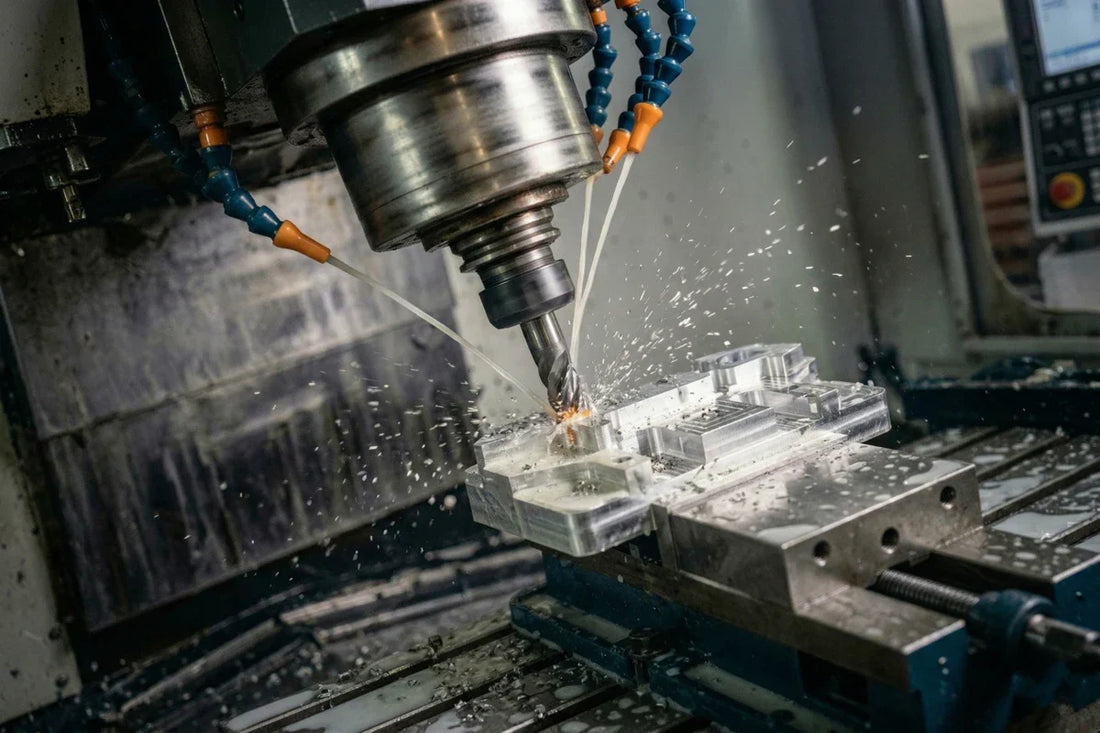

How does a CNC machine work? At its core, a CNC machine reads a set of digital instructions and uses computer-controlled motors to move a cutting tool — or the workpiece itself — along precise paths to remove material and form a final part. The process runs automatically, with tolerances that human hands simply can't match consistently.
This guide covers the full picture: the workflow from design to finished part, the mechanics behind the axes, what G-code actually does, and why the number of axes on a machine matters more than most beginners realize.
What CNC Actually Means
CNC stands for Computer Numerical Control. The term dates back to the 1950s when MIT engineers first demonstrated that machine tools could be driven by punched tape instead of a machinist's hands. The "numerical" refers to the coordinates and values that define every movement — position, speed, depth, direction.
Modern CNC systems are far removed from punched tape, but the principle hasn't changed: a machine follows a precise numerical program, and the output is a part that matches the digital design.
How CNC works is fundamentally different from manual machining. In manual machining, a skilled operator controls tool movement through handwheels and levers, relying on feel and experience. In CNC, that same movement is encoded as a program, executed identically every time the machine runs.
How CNC Differs from 3D Printing and Manual Machining
CNC machining is a subtractive manufacturing process — you start with a solid block, sheet, or rod of raw material and remove material until the final shape is revealed. Every cut takes something away. Nothing is added.
This puts CNC in direct contrast with two other processes makers encounter constantly:
- 3D printing (additive manufacturing): builds geometry by depositing material layer by layer — no raw block required, but material properties and surface finish are limited by the process
- Manual machining: a skilled operator physically guides the cutting tool by hand — capable of good results, but dependent on individual skill and impossible to replicate consistently at scale
|
Process |
Approach |
Precision |
Best For |
|
CNC Machining |
Removes material |
±0.001 in |
Functional metal/plastic parts |
|
3D Printing |
Adds material |
±0.005–0.020 in |
Rapid prototyping, complex geometry |
|
Manual Machining |
Human-guided cutting |
Operator-dependent |
Low-volume, simple shapes |
The practical takeaway: when a part needs to be strong, dimensionally accurate, and made from a real engineering material — aluminum, steel, brass, PEEK — CNC is typically the right call. When you're iterating quickly on form or need internal geometry a cutting tool can't reach, 3D printing fills the gap.
How Does a CNC Machine Work: The Full Workflow
The process of how CNC machining works breaks down into five stages. Each stage depends on the one before it, so getting any step wrong affects everything downstream.
Stage 1 — Design the Part in CAD
Every CNC part starts as a digital model. Designers and engineers use CAD (Computer-Aided Design) software to create a precise 2D drawing or 3D model that defines every dimension, surface, hole, and feature of the part.
Widely used CAD tools include:
- Fusion 360 — Popular with US makers and small shops; free for personal use
- SolidWorks — Industry standard in manufacturing and engineering firms
- Onshape — Cloud-based, no local install required
- AutoCAD — Common for 2D drafting and technical drawings
The CAD model is the master reference. Every subsequent step derives from it, so accuracy here directly determines accuracy in the finished part.
Stage 2 — Generate Toolpaths in CAM
A CAD model describes what to make. CAM (Computer-Aided Manufacturing) software determines how to make it — specifically, how the cutting tool should move through the material to produce that shape.
CAM software calculates:
- The sequence of cuts (roughing passes first, finishing passes last)
- Cutting tool selection (end mill diameter, flute count, material)
- Spindle speed and feed rate
- Depth per pass
- Where to enter and exit the material
The output of this process is a file called G-code — the actual instructions the CNC machine will run.
Stage 3 — G-Code: The Language of CNC
G-code is a plain-text programming language made up of short commands. Each line tells the machine controller one thing: move to this position, at this speed, along this path.
A basic G-code example:
G00 X0 Y0 Z5 ; Rapid move to start position
G01 Z-2 F100 ; Feed down 2mm into material
G01 X75 F300 ; Cut 75mm along X-axis
G02 X100 Y25 R25 ; Clockwise arc
M05 ; Stop spindle
M30 ; End program
G-codes control movement and positioning. M-codes handle machine functions — starting and stopping the spindle, activating coolant, changing tools.
Most machinists working with CAM software never write G-code manually. But reading it is a useful skill. When a part comes out wrong, the G-code is often where the answer is.
Stage 4 — Machine Setup
Before any cutting starts, the operator prepares the machine:
- Clamp the workpiece securely to the machine table or chuck — a workpiece that shifts mid-cut is a ruined part
- Install the correct cutting tools in the spindle or tool changer
- Set the work origin (zero point) — the reference position from which all G-code coordinates are measured
- Load the G-code via USB drive, network connection, or direct input
Setup is where experience matters most. An experienced machinist can spot potential issues in a G-code program before the machine runs — things like a tool path that cuts into a clamp, or a feed rate too aggressive for the material.
Stage 5 — Machining and Post-Processing
With the program loaded and workpiece secured, the machine runs the G-code. The controller reads each line, sends signals to the drive motors, and those motors move the tool along the programmed path — removing material pass by pass until the finished shape is complete.
When machining is done:
- Remove the part and inspect dimensions with calipers or a coordinate measuring machine (CMM)
- Deburr sharp edges left by the cutting process
- Apply any required finishing: anodizing, powder coating, polishing, heat treatment
For high-tolerance applications in aerospace or medical manufacturing, every part is measured and logged before it ships.
The Key Components Inside a CNC Machine
Knowing how the pieces fit together makes it easier to understand why CNC machines behave the way they do — and what to check when something goes wrong.
|
Component |
Function |
|
Machine Control Unit (MCU) |
Reads G-code and translates it into motor commands |
|
Drive System |
Servo or stepper motors that move the axes |
|
Spindle |
Rotates the cutting tool at programmed speeds (often 5,000–24,000 RPM) |
|
Worktable / Bed |
Holds the workpiece; may be fixed or capable of movement |
|
Feedback System |
Encoders that report actual axis position back to the controller |
|
Coolant System |
Delivers cutting fluid or air to cool the tool and clear chips |
The feedback system is what distinguishes closed-loop machines (servo-driven, position-verified) from open-loop machines (stepper-driven, position assumed). Closed-loop systems are more accurate and self-correcting — if a motor slips, the encoder catches it. Open-loop systems are simpler and common in desktop CNC machines, where the tradeoff is acceptable.
CNC Axes Explained
The number of axes on a CNC machine defines which directions the cutting tool can move — and therefore what geometries the machine can produce.
3-Axis CNC
The standard configuration. The tool moves along three linear axes:
- X-axis — left and right
- Y-axis — front and back
- Z-axis — up and down
3-axis CNC handles the majority of common machining tasks: pockets, slots, holes, flat profiles, and straightforward 3D contours. It's the most widely available configuration and the right starting point for most workshops.
Limitation: The tool can only approach the workpiece from directly above. Parts with features on the side or underside require manual repositioning between setups, which introduces error and adds time.
4-Axis CNC
Adds a rotational axis — typically rotation around the X-axis (called the A-axis). The workpiece can rotate, allowing the tool to reach features on multiple faces without the operator removing and re-clamping the part.
Common applications: cylindrical parts, camshafts, engraving on curved surfaces.
5-Axis CNC
Adds a second rotational axis (B-axis, rotating around Y). With two rotational axes plus three linear ones, the cutting tool can approach the workpiece from virtually any angle.
What 5-axis CNC enables:
- Complex curved surfaces machined in a single setup
- Undercuts and compound angles without repositioning
- Better surface finish on contoured geometry (the tool maintains a consistent angle to the surface)
- Shorter, more rigid tool paths — which means less vibration and better accuracy
5-axis has traditionally been associated with aerospace components, turbine blades, and medical implants. The barrier is dropping. Desktop 5-axis CNC machines now bring this capability to independent product developers and small-batch manufacturers who previously needed to outsource complex geometry to a job shop.
Types of CNC Machines
How CNC works varies depending on the CNC machine type. The core principle — computer-controlled movement executing a programmed toolpath — is consistent. What changes is the cutting method and what the machine is designed to do.
|
Machine Type |
How It Cuts |
Typical Applications |
|
CNC Mill |
Rotating multi-flute tool removes material from a fixed workpiece |
Aluminum parts, molds, brackets, housings |
|
CNC Lathe |
Workpiece rotates; fixed cutting tool shapes it |
Shafts, cylinders, threads, rings |
|
CNC Router |
High-speed spindle cuts wood, plastic, foam |
Cabinetry, signage, soft-metal prototypes |
|
CNC Plasma Cutter |
Plasma torch cuts through sheet metal |
Structural steel, brackets, panels |
|
CNC Laser Cutter |
Laser beam cuts or engraves |
Sheet materials, engraving, thin metals |
|
CNC EDM |
Electrical discharge erodes hardened material |
Complex cavities, hardened steel molds |
For product developers and makers working with metal or engineering plastics, the CNC mill is the workhorse. It handles the widest material range and part complexity.
Advantages of CNC Machining
- Precision — Tolerances as tight as ±0.001 inches (±0.025 mm) on professional machines
- Repeatability — Part 1 and part 1,000 are identical; no drift from operator fatigue
- Automation — Machines can run unattended through nights and weekends
- Material range — Aluminum, steel, titanium, brass, wood, acrylic, nylon, PEEK, carbon fiber
- Scalability — The same G-code that cuts a single prototype runs a production batch
Limitations Worth Knowing
- Setup time — Fixturing, tool selection, and work origin setup take time; short runs have high per-part overhead
- Tooling cost — Quality end mills and inserts are consumables; they wear and need replacement
- Design constraints — Internal sharp corners aren't machinable (the tool has a radius); some geometries require EDM or 3D printing
- Material waste — Subtractive machining generates chips and scrap, especially on complex 3D parts
CNC vs. 3D Printing: The Practical Comparison
This comparison comes up constantly in maker and product development communities. The direct answer: they're complementary, not competing.
|
CNC Machining |
3D Printing |
|
|
Dimensional accuracy |
±0.001–0.005 in |
±0.005–0.020 in (FDM); better with SLA/SLS |
|
Material strength |
Full material properties |
Often anisotropic, layer-dependent |
|
Surface finish |
Smooth, machinable |
Visible layer lines (FDM); good with SLA |
|
Best for |
Functional metal parts, tight tolerances |
Complex organic geometry, rapid iteration |
|
Setup overhead |
Moderate to high |
Low |
Use CNC when the part needs to be strong, accurate, and made from a specific engineering material. Use 3D printing when you're iterating on form or need internal geometry the tool can't reach.
How to Get Started with CNC Machining (A Practical Path for Beginners)
If you're new to CNC — whether you're a product developer, hobbyist, engineer, or just getting into precision manufacturing — here's a practical path forward:
Learn CAD before anything else. Fusion 360 is free for personal use, has strong tutorial resources, and is widely used in US maker spaces and small shops. Start with flat 2D profiles, then move to 3D.
Understand the CAM workflow. Most entry-level desktop CNC machines bundle basic CAM software. Run the simulation before cutting — every time. It takes thirty seconds and prevents a lot of ruined stock.
Start with forgiving materials. MDF, HDPE, and soft aluminum (6061) are good first materials. They cut cleanly, don't demand high spindle power, and reveal toolpath problems clearly.
Don't skip workholding. The most common beginner mistake isn't the G-code — it's a workpiece that isn't clamped properly. A part that shifts mid-cut becomes a projectile — and a danger to everything around it.
Use community resources. Reddit's r/hobbycnc and r/machinists are active communities where beginners get direct feedback from experienced machinists. CNCCookbook and Practical Machinist forums cover G-code, feeds and speeds, and machine-specific questions in depth.
FAQs About CNC Machine
1. How does a CNC machine work step by step?
A CNC machine works through five sequential stages: first, a designer creates a 2D or 3D model in CAD software; second, CAM software converts that model into a G-code program defining every tool movement; third, the operator loads the material, installs cutting tools, and sets the work origin; fourth, the machine controller reads the G-code and drives the motors to cut the part automatically; fifth, the finished part is removed, inspected, and post-processed as needed.
2. What exactly does a CNC machine do?
A CNC machine uses computer-controlled motors to move a cutting tool — or the workpiece — along programmed paths, removing material from a raw block to produce a precisely shaped part. It executes the same programmed instructions every time it runs, which is what gives CNC its accuracy and repeatability. Depending on the machine type, it can mill, drill, turn, cut, or engrave a wide range of materials including metals, plastics, and wood.
3. What materials can CNC machines cut?
Common materials include aluminum, steel, brass, copper, titanium, wood, MDF, acrylic, HDPE, nylon, PEEK, and carbon fiber. Material choice is determined by spindle power, machine rigidity, and cutting tool selection.
4. What's the difference between 3-axis and 5-axis CNC?
3-axis machines move along X, Y, and Z — the tool can only approach the workpiece from above. 5-axis adds two rotational axes, allowing the tool to reach the workpiece from virtually any angle. This eliminates most manual repositioning, improves surface finish on curved geometry, and enables features that 3-axis machines simply can't produce in a single setup.
Conclusion
Understanding how CNC works demystifies the bridge between digital intent and physical reality. It is a seamless synergy where CAD designs are translated into G-code precision, driving high-torque motors to sculpt raw material into complex geometries. While the computer orchestrates the logic, the machine executes the power.
Today, the "barrier to entry" has collapsed. The leap from industrial 5-axis centers to high-performance desktop CNCs means that precision manufacturing is no longer outsourced—it’s in-house. By mastering the workflow from CAM simulation to the final cut, you gain the ultimate competitive edge: the ability to prototype, iterate, and produce on your own terms.
