Vertical CNC Milling Machine vs Horizontal CNC Machine: Key Differences Explained

Choosing between a CNC vertical milling machine and a horizontal CNC milling machine is not just a question of spindle direction. It affects how you fixture parts, remove chips, see the cutting process, manage floor space, train operators, and control total machine cost.

The short version: horizontal CNC machines are powerful in high-volume factory production, but vertical CNC milling machines are usually more practical, more accessible, and easier to integrate into real-world workflows for makers, product designers, university labs, prototype teams, jewelry workshops, dental labs, and small manufacturers.

That advantage becomes even stronger with modern desktop 5-axis vertical CNC machines. A well-designed vertical machine is not simply a smaller version of an industrial VMC. Its structure can make the machine more compact, easier to clean, more stable over time, and more approachable for users who need professional results without building a factory around the machine.

This guide compares vertical and horizontal CNC milling machines in plain terms, with a focus on real buying decisions: what each machine does best, where each one becomes limiting, and why a vertical CNC milling machine is often the better choice for flexible, high-precision work.

Quick Answer: Why Choose a Vertical CNC Milling Machine?

A vertical CNC milling machine is usually the better choice when you need useful machining capability in a smaller, more manageable, and easier-to-operate format.

For many users, the biggest benefits are:

• Better visibility: the tool cuts from above, so setup and first cuts are easier to observe.
• Smaller footprint: vertical architecture can fit on a bench, in a lab, or in a compact workshop.
• Lower total cost: machine price, installation, training, and facility requirements are usually lower.
• Easier learning curve: the machine layout is more intuitive for students, makers, and small teams.
• Flexible part development: ideal for prototypes, one-offs, small batches, and changing designs.
• Cleaner workflow: a well-designed vertical machine can collect chips directly below the cutting area.
• Modern 5-axis capability: complex geometry is no longer limited to large industrial machines.

A horizontal CNC milling machine is usually better for high-volume industrial production, heavy chip removal, multi-face machining with tombstone fixtures, and facilities that already have experienced CNC operators and the budget for a larger machine cell.

For most non-factory users, a vertical CNC milling machine offers the stronger balance of capability, cost, space efficiency, and ease of use.

What Is a CNC Vertical Milling Machine?

A CNC vertical milling machine, often called a VMC or vertical machining center, has a spindle that points downward toward the workpiece. The cutting tool moves along the vertical Z-axis, while the table or machine structure controls movement across the X and Y axes.

This layout is easy to understand because the tool approaches the material from above. Operators can see the cutter, inspect the workpiece, check tool clearance, and monitor the first pass more easily than on many enclosed horizontal systems.

Vertical CNC milling machines are commonly used for:

• Prototyping and product development
• R&D labs and university engineering programs
• Maker spaces and small workshops
• Jewelry, dental, and medical components
• Precision plates, housings, molds, and fixtures
• Small-batch manufacturing
• 3-axis, 4-axis, and 5-axis machining

The biggest advantage is accessibility. A vertical CNC machine can range from a compact desktop CNC machine to a full-size industrial VMC. That gives buyers more flexibility in budget, space, and capability.

For example, desktop-class 5-axis VMCs such as the InfiMaker K1 are designed to bring multi-axis machining into small studios, labs, and workshops where a traditional industrial machining center would be too large or expensive.

What Is a Horizontal CNC Milling Machine?

A horizontal CNC milling machine, often called an HMC or horizontal machining center, has a spindle that points sideways. Instead of cutting from above, the tool cuts into the workpiece from the side.

This orientation gives horizontal machines two major advantages in industrial production: chips fall away from the cutting zone more naturally, and parts can be mounted on tombstone fixtures or pallets for efficient multi-face machining.

Horizontal CNC milling machines are commonly used for:

• Automotive and aerospace production
• High-volume metal part manufacturing
• Large production cells with pallet changers
• Multi-face machining on prismatic parts
• Heavy material removal
• Long unattended or semi-automated production runs

The tradeoff is cost and complexity. Horizontal machining centers are usually larger, more expensive, and more demanding to set up. They often require more advanced fixturing, more floor space, stronger chip and coolant management, and operators with more production machining experience.

For a factory running thousands of similar parts, that investment can make sense. For a lab, studio, school, or small workshop, it is often more machine than the workflow needs.

CNC Vertical Milling Machine vs Horizontal CNC Milling Machine: Comparison Table



Why Vertical CNC Milling Machines Work So Well for Modern Makers and Labs

Many comparisons focus only on one point: horizontal machines clear chips better. That is true in many industrial settings, but it misses why vertical CNC machines are so widely used outside high-volume production.

For makers, labs, educators, product teams, and small workshops, the real value of a vertical CNC milling machine is workflow fit.

Vertical machines are easier to understand and supervise

Because the spindle cuts from above, the operator can see the tool, the stock, the fixture, and the cutting area more naturally. This matters during setup, toolpath verification, first-article runs, and student training.

When something does not sound or look right, the operator can usually identify the issue faster. That reduces wasted material, broken tools, and failed first attempts.

Vertical machines make better use of small spaces

A vertical layout stacks the machining action around the Z-axis instead of spreading the workflow across a large industrial cell. That makes it easier to build compact machines for desks, benches, labs, and studios.

For users who do not have a dedicated factory floor, this is not a minor benefit. A machine that fits the available space is a machine that can actually be used.

Vertical machines support faster iteration

In prototyping, the goal is not always maximum throughput. The goal is to make a part, learn from it, adjust the design, and cut the next version quickly.

Vertical CNC milling machines are well suited to this because they are easier to set up, easier to inspect, and easier to reconfigure between jobs. For small teams, that flexibility often matters more than the cycle-time advantages of a horizontal production cell.

Modern vertical machines can solve traditional VMC weaknesses

Older or poorly designed vertical machines can struggle with chip buildup, thermal drift, rigidity, and limited part access. Modern desktop 5-axis VMCs can address those issues directly through machine structure, cooling, chip collection, and multi-axis motion.

That is why the question should not be “vertical or horizontal” in the abstract. The better question is: how well is the specific machine designed for the workflow you need?

8 Design Features That Make a Vertical CNC Machine More Valuable

A vertical CNC milling machine becomes much more useful when the structure is designed around rigidity, compactness, chip control, thermal stability, and toolholding. These design choices turn vertical orientation from a simple layout into a real user advantage.

Using the InfiMaker K1 as an example, here are the features that directly improve the vertical CNC workflow.

1. Inverted Gantry Structure for Rigidity and Compact Size

The InfiMaker K1 5 axis CNC machine uses an inverted gantry structure with three-point rigid support fixed to the main frame. This integrates the motion axes into the main machine bed instead of spreading them across a larger external structure.

The result is a machine that stays compact while improving structural rigidity. For users, that means more stable machining accuracy, less wasted space, and a desktop-class footprint that still supports serious work.

This is one of the clearest advantages of a well-designed vertical CNC machine: the machine can be small without feeling fragile.

2. One-Piece Cast Aluminum Bed for Long-Term Accuracy

The machine body uses a one-piece cast aluminum bed. A rigid integrated bed helps reduce deformation over time and keeps the machine geometry more stable during long-term use.

For the user, the benefit is practical: less time spent on precise leveling, fewer setup headaches after moving or placing the machine, and better accuracy retention over time.

This matters especially for labs, classrooms, and small workshops where machines may not live on heavy industrial foundations.

3. Drawer-Style Chip Collection Beneath the Cutting Area

One common concern with vertical CNC milling machines is chip accumulation. The K1 addresses this with a full-through drawer-style chip collection structure directly below the machining zone.

Because chips fall vertically into a large enclosed drawer, the user gets a cleaner workspace and easier maintenance. Instead of constantly stopping to clean around the tool and table, chips are collected where gravity already sends them.

This design turns a traditional vertical-machine weakness into a daily-use advantage.

4. Rigid Z-Axis Structure to Reduce Tool Deflection

The K1 uses a rigid upright Z-axis structure designed to transfer cutting forces directly into the main bed across the full travel range. This helps avoid cantilever-style sagging and uneven tool loading.

For machining results, that means stronger cutting rigidity, more consistent tool force, less vibration, and reduced tool wear. Over time, better force transmission can help extend tool life and improve surface finish consistency.

For users working with small tools, fine details, or repeatable precision parts, this is a major benefit.

5. Short Precision Spindle for a Smaller and Stiffer Machine

A shorter spindle helps reduce unnecessary overhang. The K1 uses a self-developed precision spindle with an optimized short body, reducing spindle length by more than 100 mm compared with many similar spindle solutions.

That shorter spindle supports a lighter, more compact machine design while helping preserve rigidity near the cutting area. For users, the benefit is a smaller machine envelope without sacrificing the precision expected from a capable vertical CNC milling machine.

6. Center-Mounted Motor and Dual-Support Spindle Structure

The spindle uses a center-mounted motor with dual support. By embedding the motor inside the spindle structure and supporting it symmetrically, the design reduces eccentric motion and vibration during high-speed operation.

The user-facing result is more stable spindle speed, smoother engraving and milling, better detail accuracy, and less vibration during operation.

This is especially important for fine machining, small cutters, detailed surfaces, and materials where vibration can quickly damage finish quality.

7. Spiral Water-Channel Liquid Cooling for Thermal Stability

Heat affects precision. As a spindle warms up, thermal expansion can change dimensions and reduce consistency during longer machining sessions.

The K1 uses an integrated spiral water-channel liquid cooling design around the spindle housing. Circulating coolant surrounds the heat-generating area, helping reduce operating temperature and limit thermal growth.

For the user, that means more stable long-run accuracy, better dimensional consistency, and longer spindle life.

8. Hydraulic Tool Clamping for Stronger Holding Force

Toolholding affects vibration, surface finish, safety, and reliability. The K1 uses an integrated hydraulic tool clamping system for tool release and clamping.

Compared with electric clamping systems in similar machines, the hydraulic design provides more than 30% higher clamping force. Stronger clamping helps reduce tool movement, improves cutting stability, and can lower long-term maintenance pressure.

For users who care about repeatable precision, this is not just a convenience feature. It directly affects machining confidence.

7 Key Differences Between Vertical and Horizontal CNC Machines

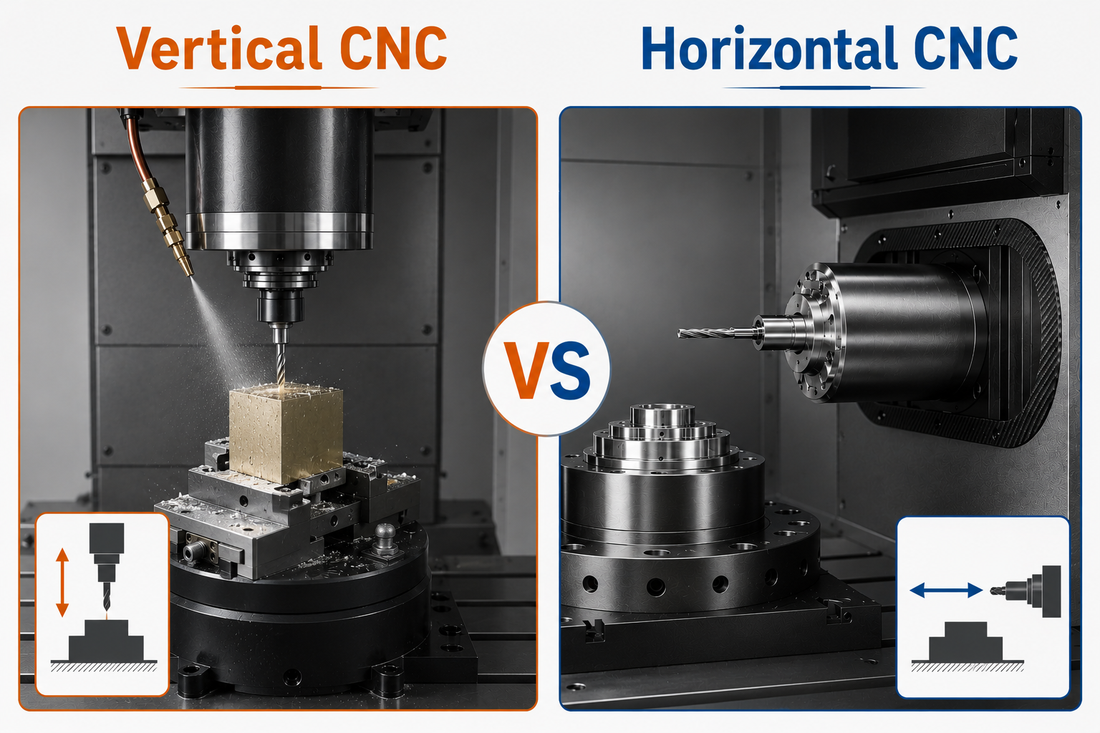

1. Spindle Orientation and Part Access

The most obvious difference is the spindle direction. On a vertical CNC milling machine, the cutting tool points downward. This makes the machine feel intuitive because the workpiece sits flat on the table and the operator can see the tool approach the material from above.

On a horizontal CNC milling machine, the spindle cuts from the side. This can be powerful for machining several faces of a part, especially when the part is mounted on a tombstone fixture. However, it also makes setup less intuitive for beginners and often requires more planning around workholding, tool reach, and clearance.

If your work changes often, vertical orientation usually makes setup faster. If you repeat the same multi-face part at high volume, horizontal orientation may reduce handling time.

2. Chip Evacuation

Chip evacuation is one of the biggest technical advantages of horizontal CNC machines. Since the spindle cuts from the side, chips tend to fall away from the cutting zone. This reduces chip recutting, improves tool life, and helps maintain consistency during long production runs.

Vertical CNC milling machines can still handle chips effectively, but they need the right machine design. A simple open-frame vertical machine may leave chips around the work area. A better-designed vertical machine collects chips directly below the cutting zone, where gravity naturally pulls them.

This is why chip management should be evaluated by design, not just by machine orientation. For a small workshop or desktop CNC setup, a sealed drawer-style chip system can be more valuable than a large industrial chip conveyor that the workspace cannot support.

3. Cost and Total Ownership

A horizontal CNC milling machine is usually a major capital investment. Industrial HMCs can cost from around $150,000 to well over $500,000 before tooling, workholding, installation, coolant systems, training, and facility preparation.

Vertical CNC milling machines cover a much wider price range. Entry-level desktop machines may cost a few thousand dollars, industrial VMCs can cost tens of thousands, and compact 5-axis vertical machines sit between hobby tools and full factory equipment.

When comparing cost, look beyond the machine price. Consider:

• Tooling and holders
• Workholding and fixtures
• CAM software
• Coolant, chip collection, and filtration
• Electrical requirements
• Operator training
• Maintenance and replacement parts
• Space, noise, and ventilation requirements

For many small teams, the lower total ownership cost of a vertical CNC machine matters more than maximum production throughput.

4. Footprint and Facility Requirements

Horizontal CNC machining centers are built for production environments. They often need large floor space, access around the machine, coolant management, chip conveyors, power requirements, and sometimes pallet loading areas.

Vertical CNC machines are more flexible. A full-size VMC still needs proper shop infrastructure, but benchtop and desktop vertical CNC machines can fit into smaller spaces such as:

• Design studios
• School labs
• Engineering offices
• Garage workshops
• Maker spaces
• Research labs
• Jewelry and dental workrooms

This difference is important for teams that want to bring CNC capability closer to the design process. If the machine can live in the same environment as the designer, engineer, or researcher, iteration becomes faster.

5. Part Complexity and Axis Count

Machine orientation is not the same as axis count. A vertical CNC machine can be 3-axis, 4-axis, or 5-axis. A horizontal CNC machine can also support multi-axis machining.

Traditional 3-axis vertical CNC machines are excellent for flat surfaces, pockets, slots, engraving, drilling, and many prismatic parts. Add rotary axes, and the machine can access more sides of the workpiece with less refixturing.

A 5-axis CNC vertical milling machine can move the cutting tool and workpiece across five axes, making it possible to machine compound angles, curved surfaces, undercuts, molds, implants, jewelry patterns, and complex prototypes.

This is where modern desktop 5-axis machines are changing expectations. A compact vertical machine cannot replace every industrial HMC, but it can give small teams access to complex geometry that used to require outsourcing or much larger equipment.

6. Precision and Surface Finish

Precision is not determined by vertical vs horizontal orientation alone. Surface finish and accuracy depend on the machine’s rigidity, spindle quality, thermal stability, toolholding, motion control, fixturing, and cutting strategy.

A well-built vertical CNC milling machine can produce excellent surface finishes. A poorly built horizontal machine will not automatically produce better parts simply because it is horizontal.

When evaluating precision, look for specs and design details such as:

• Positional accuracy
• Repeatability
• Spindle runout
• Frame rigidity
• Thermal management
• Tool clamping force
• Linear guide and ball screw quality
• Vibration control

For example, the InfiMaker K1 is positioned as a desktop 5-axis CNC machine with ±0.01 mm repeatability, a 1,500 W liquid-cooled spindle, and spindle speeds up to 20,000 RPM. Those specs are relevant for users who need fine detail, small tools, and repeatable results in a compact format.

7. Learning Curve and Workflow

Vertical CNC machines are generally easier to learn because the machine layout matches how most people visualize cutting: the tool comes down from above, and the workpiece sits on a visible table.

This helps with:

• Setup and toolpath verification
• Manual inspection
• First-article testing
• Troubleshooting
• Training students or new operators
• Short-run jobs that change frequently

Horizontal CNC machines reward experience. They can be extremely efficient in the right production environment, but they are less forgiving when fixturing, programming, chip load, or tool clearance is not planned carefully.

If your team is still building CNC knowledge, vertical is usually the safer starting point.

When a Vertical CNC Milling Machine Is the Better Choice

Choose a vertical CNC milling machine if your priority is flexibility, ease of use, and practical capability in a smaller space.

A vertical CNC machine is usually the better fit when:

• You are prototyping new parts and changing designs often
• You need CNC capability in a lab, studio, classroom, or small workshop
• You are machining small to medium parts
• You need good visibility during setup and testing
• You want to reduce the learning curve for new users
• You do not have space for a large industrial machine cell
• You need 3-axis or 5-axis capability without factory-scale infrastructure
• You want cleaner chip handling in a compact workspace
• You need stable precision without a heavy industrial foundation
• You work in jewelry, dental, medical, education, product design, or hardware prototyping

For these users, the best machine is not always the largest or fastest one. It is the machine that gets used every day because it fits the workflow.

When a Horizontal CNC Milling Machine Is the Better Choice

Choose a horizontal CNC milling machine if your priority is production efficiency and your facility is prepared for industrial machining.

A horizontal CNC machine is usually the better fit when:

• You run high-volume production
• You machine the same part repeatedly
• You need excellent chip evacuation for heavy material removal
• You use tombstone fixtures or pallet changers
• You need to machine several faces of a part with minimal handling
• You have trained CNC operators and production CAM workflows
• You can justify the higher cost through cycle-time savings

In the right environment, a horizontal machining center can be more productive than a vertical machine. The key is volume. Without enough repeat work, the benefits may not offset the cost and complexity.

CNC Vertical Milling Machine Specifications to Compare Before Buying

If you are evaluating vertical CNC milling machines, focus on specs and design choices that affect real machining results rather than headline claims.

For a desktop 5-axis CNC machine, these details matter even more because the machine must balance compact size with rigidity, cooling, and usable workholding.

Common Buying Mistakes to Avoid

Mistake 1: Buying for maximum capability instead of actual workflow

A larger machine is not automatically better. If your work is mostly prototypes, education, small batches, or changing part designs, a flexible vertical CNC machine may create more value than an industrial HMC.

Mistake 2: Ignoring structure and rigidity

Compact machines still need strong mechanical design. Look for a rigid bed, stable Z-axis structure, short spindle overhang, and good force transmission. Software cannot fully compensate for weak structure.

Mistake 3: Ignoring chip management

Chip control affects cleanliness, tool life, surface finish, and user experience. Make sure the machine has a realistic chip collection plan for your workspace.

Mistake 4: Comparing only machine price

Tooling, CAM software, workholding, training, maintenance, and facility setup can change the real cost significantly.

Mistake 5: Assuming 5-axis always means industrial scale

5-axis machining is no longer limited to large factory machines. Desktop and benchtop 5-axis CNC systems now make multi-axis machining practical for smaller teams.

Mistake 6: Underestimating thermal stability

Spindle heat can affect accuracy during longer jobs. If you need repeatable precision, cooling design and thermal control should be part of the buying decision.

Mistake 7: Underestimating training time

Horizontal CNC machines can be productive, but they require stronger process planning. If your users are new to CNC, machine usability matters.

Where Desktop 5-Axis Vertical CNC Machines Fit

Desktop 5-axis vertical CNC machines fill the gap between entry-level hobby routers and large industrial machining centers.

They are especially useful for teams that need:

• Real CNC precision in a compact workspace
• Complex geometry without repeated manual refixturing
• Faster design iteration
• Lower total cost than industrial 5-axis systems
• Cleaner chip handling than open-frame hobby machines
• Better rigidity and thermal control than basic desktop routers
• A machine that can live in a lab, studio, or workshop instead of a factory floor

The InfiMaker K1 is built for this category. Its inverted gantry structure, one-piece cast aluminum bed, rigid Z-axis design, short precision spindle, liquid-cooled spindle housing, hydraulic tool clamping, and integrated chip drawer are all designed around the same goal: make professional 5-axis machining more practical in a compact vertical CNC format.

It will not replace a high-volume horizontal machining center in a factory cell. That is not the point. Its value is giving creators, labs, and small teams access to advanced machining capability without the space and cost requirements of traditional industrial equipment.

FAQ

1. Is a vertical or horizontal CNC milling machine better?

Neither is universally better. A vertical CNC milling machine is better for flexibility, visibility, lower cost, smaller spaces, prototyping, education, and small-batch work. A horizontal CNC milling machine is better for high-volume production, heavy chip removal, pallet automation, and repeat multi-face machining.

2. What are the main benefits of a CNC vertical milling machine?

The main benefits are easier setup, better visibility, smaller footprint, lower total ownership cost, flexible prototyping, and a more approachable learning curve. In modern 5-axis vertical CNC machines, strong structure, liquid-cooled spindles, integrated chip collection, and rigid Z-axis design can also improve precision, cleanliness, and long-term usability.

3. What is a CNC vertical milling machine used for?

A CNC vertical milling machine is used for milling, drilling, contouring, engraving, pocketing, mold work, fixture making, prototypes, and precision parts. With 5-axis capability, it can also machine complex curved surfaces, compound angles, and features that are difficult to reach on a standard 3-axis setup.

4. What is the main advantage of a horizontal CNC milling machine?

The main advantage is chip evacuation and production efficiency. Because the spindle cuts from the side, chips fall away from the cutting zone more easily. Horizontal machines also work well with tombstone fixtures and pallet systems for repeat production.

5. Can a desktop CNC machine do true 5-axis machining?

Yes, some modern desktop CNC machines are designed for true 5-axis machining. Buyers should check whether the machine supports simultaneous 5-axis motion, what materials it can cut, its repeatability, spindle power, rigidity, cooling design, toolholding, and CAM workflow.

6. Is a vertical CNC milling machine good for beginners?

Yes. Vertical CNC machines are generally easier to understand, set up, and monitor. The downward-facing spindle and visible work area make them more approachable for students, makers, and teams that are still developing CNC skills.

7. How much does a vertical CNC milling machine cost?

The price range is wide. Entry-level desktop CNC machines may cost a few thousand dollars, while industrial VMCs can cost tens of thousands or more. Desktop 5-axis vertical CNC machines usually sit between hobby machines and full industrial systems, offering more capability than basic routers without the cost of a factory machining center.

8. Does machine orientation determine precision?

No. Precision depends more on rigidity, spindle quality, thermal control, motion components, toolholding, workholding, and machining strategy. Both vertical and horizontal CNC machines can be precise when they are well designed and properly used.

Conclusion: Choose the Machine That Fits Your Workflow

The vertical vs horizontal CNC decision comes down to workflow.

If you run high-volume industrial production and need palletized multi-face machining, a horizontal CNC milling machine may be the right investment. If you need flexible machining for prototypes, education, small batches, product development, or compact 5-axis work, a CNC vertical milling machine is usually the more practical choice.

The real benefit of a modern vertical CNC machine is not only that the spindle points downward. It is that the vertical layout can support a compact, visible, rigid, and clean machining workflow. With the right structure, cooling, spindle design, toolholding, and chip management, a vertical CNC milling machine can deliver serious capability in a format that more users can actually own, operate, and maintain.

For makers, designers, labs, and small teams, that balance is often more valuable than industrial-scale throughput. That is where desktop 5-axis VMCs such as the InfiMaker K1 can make advanced machining more accessible.
